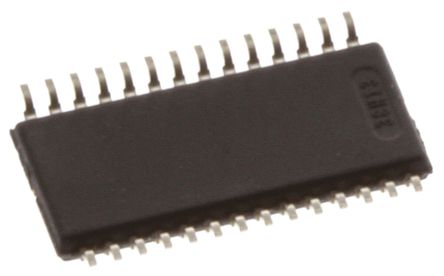

Image is for your reference only,please check specifications for details
- TLC59116IPWR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC4035145
-
Category:LED Driver, LED Display Driver
-
Package:TSSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:Led Driver, 16Outputs, PWM Dimming, 3V-5.5V in, 1MHz switch, 17V/120mA out, TSSOP-28
-
Stock Locations:
-
Availability:9,763 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.12
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLC59116IPWR is a 16bit fast mode plus (FM+) I2C bus constant current LED sink driver in 28 pin TSSOP package. It is optimized for red/green/blue/amber (RGBA) colour mixing and backlight application. Each LED output has its own 8bit resolution (256 steps) fixed frequency individual PWM controller that operates at 97KHz with a duty cycle that is adjustable from 0% to 99.6%. The individual PWM controller allows each LED to be set to a specific brightness value. An additional 8bit resolution (256 steps) group PWM controller has both fixed frequency of 190Hz and adjustable frequency between 24Hz to once every 10.73seconds with a duty cycle that is adjustable from 0% to 99.6%. The group PWM controller dims or blinks all LEDs with same value. Each LED output can be off, on (no PWM control) or set at its individual PWM controller value at both individual and group PWM controller values.
- Constant output current range from 5mA to 120mA
- Maximum output voltage of 17V
- 16 constant current output channels
- 3.3V or 5V supply voltage
- Four hardware address pins allow 14 TLC59116 devices to be connected to same I2C bus
- 1MHz fast mode plus (FMT) compatible I2C bus interface with 30mA high drive capability
- Internal power on reset, no glitch on power up
- Noise filter on SCL and SDA inputs
- Open load and overtemperature detection mode to detect individual LED errors
- Operating temperature range -40°C to 85°C
- This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TLC59116IPWR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | TSSOP-28 |
| Frequency | 25 MHz |
| Number of Outputs | 16 Output |
| Input Voltage (DC) | 3.00V ~ 5.50V |
| Output Voltage | 17 V |
| Output Current | 120 mA |
| Supply Current | 3700 mA |
| Number of Positions | 28 Position |
| Power Dissipation | 1207 mW |
| Switching Frequency | 1 MHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 17 V |
| Output Current (Max) | 120 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1207 mW |
| Supply Voltage | 3V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 3 V |
| Input Voltage | 3V ~ 5.5V |
| Show | |
| Size-Length | 9.7 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
| ECCN Code | EAR99 |
