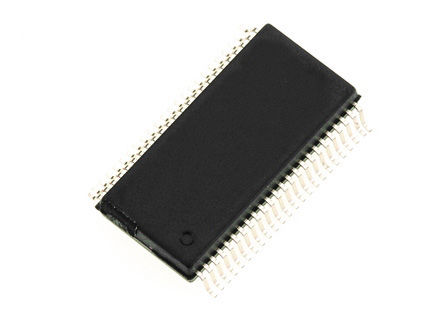

Image is for your reference only,please check specifications for details

TLC5920DL - TI
Manufacturer:
TI
ManyChip's Part#:
MC41121126
Category:
LED Driver, LED Display Driver
Package:
SSOP-48
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLC5920DL LED Driver, Constant Current, 4.5-5.5V input, 16Outputs, 10MHz, 900mV/640mA out, SSOP-48
Stock Locations:
Availability:
206 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.81

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The TLC5920 is an LED driver incorporating a 16-channel shift register, data latch, and constant current circuitry with current value control and 8-channel common driver into a single chip. The constant output current is capable of 30 mA for 16 bits simultaneously, and the current value can be set by one external register. This device also includes a 16-bit segment driver and 8-bit common driver; therefore, the monocolor LED array with 16 × 8 dots can be driven by only one TLC5920, and a two-color LED array with 16 x 16 dots can be driven by two TLC5920s.
• Drive Capability:
– Segment . . . 30 mA × 16 Bits
– Common . . . 640 mA
• Constant Current Output . . . 3 mA to 30 mA (Current Value Setting for All Channels Using External Resistor)
• Constant Current Accuracy ±6% (Maximum Error Between Bits)
• Data Input: Clock Synchronized Serial Input
• LED Type Applied Cathode Common
• Logic Power Supply Voltage 4.5 V to 5.5 V
• LED Power Supply Voltage 4.5 V to 5.5 V
• Operating Frequency . . . 10 MHz
• Operating Free-Air Temperature Range –20°C to 85°C
• 48-Pin SSOL Package

Show

TLC5920DL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	SSOP-48
Frequency	10 MHz
Number of Outputs	16 Output
Input Voltage (DC)	4.50V ~ 5.50V
Output Voltage	900 mV
Output Current	640 mA
Supply Current	1600 mA
Power Dissipation	1500 W
Switching Frequency	10 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Power Dissipation (Max)	1500 mW
Supply Voltage	4.5V ~ 5.5V
	Show
Size-Length	15.88 mm
Size-Width	7.49 mm
Size-Height	2.59 mm
Operating Temperature	-20℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
