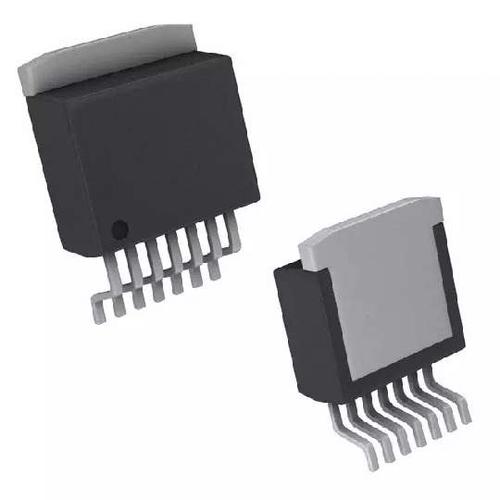

Image is for your reference only,please check specifications for details
- TLE4267G - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC56597396
-
Category:Voltage Regulator
-
Package:TO-263-8
-
Datasheet:Datasheet 3D Model
-
Description:Fixed LDO Voltage Regulator, 5.5V to 40V, 300mV Dropout, 5Vout, 400mAout, TO-263-7
-
Stock Locations:
-
Availability:1,208 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.65
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Output voltage tolerance ≤ ±2%
- 400 mA output current capability
- Low-drop voltage
- Very low standby current consumption
- Input voltage up to 40 V
- Overvoltage protection up to 60 V (≤ 400 ms)
- Reset function down to 1 V output voltage
- ESD protection up to 2000 V
- Adjustable reset time
- On/off logic
- Overtemperature protection
- Reverse polarity protection
- Short-circuit proof
- Wide temperature range
- Suitable for use in automotive electronics
- Green Product (RoHS compliant)
- AEC Qualified
- Benefits:
- Robust protection features
- Wide input operation and temperature range
- integrated overvolatege detection
- Target Applications:
- Automotive general
- Truck(commercial vehicle) control units
TLE4267G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 7 Pin |
| Case/Package | TO-263-8 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 40.0V (max) |
| Output Voltage | 5 V |
| Output Current | 400 mA |
| Number of Positions | 7 Position |
| Quiescent Current | 1300 µA |
| voltage rating | 300 mV |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 5.5 V |
| Output Current (Max) | 0.4 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | 2.0 % |
| Input Voltage | 5.5V ~ 40V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4.4 mm |
| Size-Height | 10.25 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
