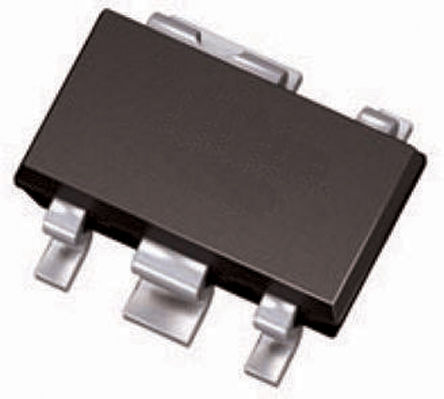

TLE4285G - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC68693672
Category:
Voltage Regulator
Package:
SCT-595-5
Datasheet:
Datasheet 3D Model
Description:
INFINEON TLE4285G Fixed LDO Voltage Regulator, 6V to 42V, 800mV Dropout, 5Vout, 70mAout, SMD-5
Stock Locations:
Availability:
204 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.33

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLE4285G is a 5V fixed output low-dropout (LDO) Linear Regulator operates at maximum input voltage of 45V. The output is able to drive an output current of more than 10mA while it regulates the output voltage within a 4% accuracy. The power fail output (open collector) is switched to low in case of under-voltage at the output pin. To reduce external components the power fail output has an internal pull-up resistor of 50kR which is connected to the output Q. The device incorporates a temperature protection that disables the circuit at overtemperature.
Low quiescent current consumption
AEC Qualified
Green product and no Sb/Br

Show

TLE4285G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SCT-595-5
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	70 mA
Number of Positions	5 Position
Quiescent Current	150 µA
voltage rating	800 mV
Input Voltage (Max)	42 V
Input Voltage (Min)	6 V
Output Current (Max)	15 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±4 %
Input Voltage	6V ~ 42V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
