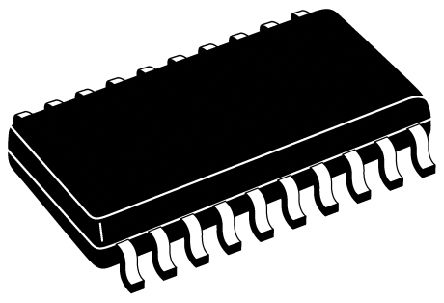

TLE6228GP - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC11281692
Category:
FET Driver
Package:
PG-DSO-20-65
Datasheet:
Datasheet 3D Model
Description:
INFINEON TLE6228GP Power Load Switch, Smart Power Technology, Low Side, Active High, 4Outputs, 32V, 5A, SOIC-20
Stock Locations:
Availability:
283 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.18

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLE6228GP is a quad channel low-side Switch (2x5A/2x3A) in Smart Power Technology (SPT) with four separate inputs and four open drain DMOS output stages. The TLE 6228 GP is fully protected by embedded protection functions. Each channel has its own status signal for diagnostic feedback. Therefore the TLE 6228 GP is particularly suitable for ABS or Powertrain systems.
Short-circuit protection
Overtemperature protection
Overvoltage protection
8-bit serial data input and diagnostic output (SPI protocol)
Direct parallel control of four
Channels for PWM applications
Cascadable with other quad switches
Low quiescent current
µC compatible input
Green product
AEC qualified

Show

TLE6228GP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PG-DSO-20-65
Number of Outputs	4 Output
Input Voltage (DC)	32.0 V
Output Current	3 A
Supply Current	8 mA
Number of Channels	4 Channel
Number of Positions	20 Position
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.8V ~ 32V
Input Voltage	32 V
	Show
Size-Length	15.9 mm
Size-Width	11 mm
Size-Height	3.5 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
