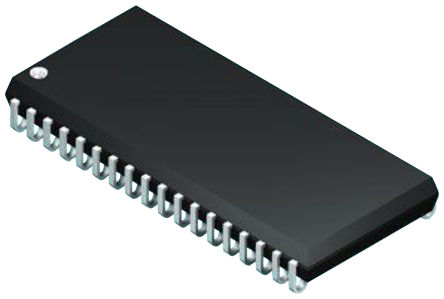

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLE6368G2 is a Multi Voltage Power Supply System especially designed for automotive applications using a standard 12V/24V battery as well as the new 42V powernet. The device is intended to supply 32 bit micro-controller systems which require different supply voltage rails such as 5V, 3.3V and 2.6V. The regulators for external sensors are also provided. The TLE6368-G2 cascades a Buck converter block with a linear regulator and tracker block on a single chip to achieve lowest power dissipation thus being able to power the application even at very high ambient temperatures. The step-down converter delivers a pre-regulated voltage of 5.5V with a minimum current capability of 1.5A.
High efficiency regulator system
Stand-by mode with low current consumption
Suitable for standard 12V/24V and 42V PowerNets
Step down converter as pre-regulator 5.5V/1.5A
Step down slope control for lowest EME
Switching loss minimization
Six independent voltage trackers (followers) 5V/17mA each
Stand-by regulator with 1mA current capability
Three independent undervoltage detection circuits for each linear post-regulator
Power on reset functionality
Tracker control and diagnosis by SPI
All outputs protected against short-circuit

Show

TLE6368G2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	PG-DSO-36
Supply Voltage (DC)	5.50V (min)
Number of Outputs	3 Output
Number of Positions	36 Position
Switching Frequency	330 kHz
Input Voltage (Max)	60 V
Input Voltage (Min)	5.5 V
Output Voltage (Max)	6.05 V
Output Voltage (Min)	5.4 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	60 V
Supply Voltage (Min)	5.5 V
Input Voltage	5.5V ~ 60V
	Show
Size-Length	15.9 mm
Size-Width	11 mm
Size-Height	3.5 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
