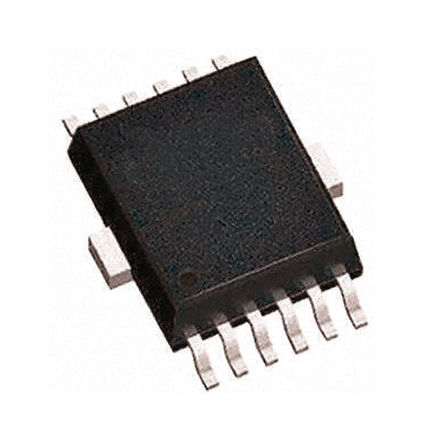

Image is for your reference only,please check specifications for details

TLE8102SG - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC10610624
Category:
FET Driver
Package:
PG-DSO-12-11
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 2 Driver, 6.5A, PDSO12, GREEN, PLASTIC, SOP-12
Stock Locations:
Availability:
1,839 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.19

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
Smart 2-channels Low-Side Switch with Current Feedback in Smart Power Technology. The TLE8102SG is designed for Powertrain applications and it"s equipped with a Serial Peripheral Interface (SPI) for control and diagnosis. A proportional Current Feedback (CFB) functionality is implemented for each cahnnel. All channels are protected against over-current/temperature and enhanced with an active clamping circuitry for driving inductive loads. Load status detection is possible over the SPI or thru the status pins for: Short to GND (SCG), Open Load (OL), and Short to Battery (SCB). 2 input pins are available for direct PWM control of the switches.
Summary of Features:
Embedded Current Feedback
8-bit SPI
2x Direct Input Pins
2x Status Pins
Active Clamping
Diagnosis for SCG, OL and SCB
Selectable Over-Current Protection (I-limit/switch-off)
Over-Temperature Protection
IC Over-Temperature Warning
Electrostatic Discharge (ESD) Protection
Low Quiescent Current Mode
3.3V µC compatible inputs
Green Product (RoHS compliant)
AEC Qualified
Benefits:
Current Feedback Function
High Current Capability
Small Efficient Package
Full Protection
Full Diagnosis
SPI communication

Show

TLE8102SG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	PG-DSO-12-11
Number of Outputs	2 Output
Input Voltage (DC)	5.50 V
Output Current	3 A
Number of Channels	2 Channel
Number of Positions	12 Position
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Input Voltage	5.5 V
	Show
Size-Length	7.6 mm
Size-Width	7.5 mm
Size-Height	2.6 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
