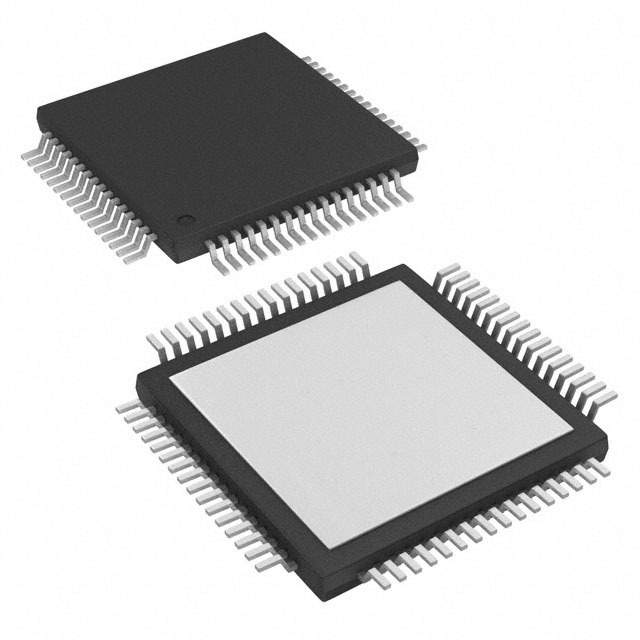

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * 0.6-Gbps to 1.3-Gbps Serializer/Deserializer * Low Power Consumption * Fast Relock Times Less Than 256 ns (Typ) Suitable for EPON/GEPON Applications * LVPECL Compatible Differential I/O on High Speed Interface * Single Monolithic PLL Design * Support For 10-Bit Interface or Reduced Interface 5-Bit DDR (Double Data Rate) Clocking * Receiver Differential Input Thresholds 200 mV Minimum * IEEE 802.3 Gigabit Ethernet Compliant * ANSI X3.230-1994 (FC-PH) Fibre Channel Compliant * Advanced 0.25-µm CMOS Technology * No External Filter Capacitors Required * Comprehensive Suite of Built-In Testability * IEEE 1149.1 JTAG Support * 2.5-V Supply Voltage for Lowest Power Operation * 3.3-V Tolerant on LVTTL Inputs * Hot Plug Protection * 64-Pin VQFP With Thermally Enhanced Package (PowerPAD) * CPRI Data Rate Compatible (614 Mbps, 1.22 Gbps) * Industrial Temperature Range Supported: –40°C to 85°C
TLK1211RCP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | VFQFP-64 |
| Supply Voltage (DC) | 2.50 V |
| Supply Current | 113 mA |
| Number of Channels | 1 Channel |
| Power Dissipation | 2890 mW |
| Data Rate | 1.30 Gbps |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2890 mW |
| Supply Voltage | 2.3V ~ 2.7V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | 5A991.b.1 |
| HK STC License | NLR |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
