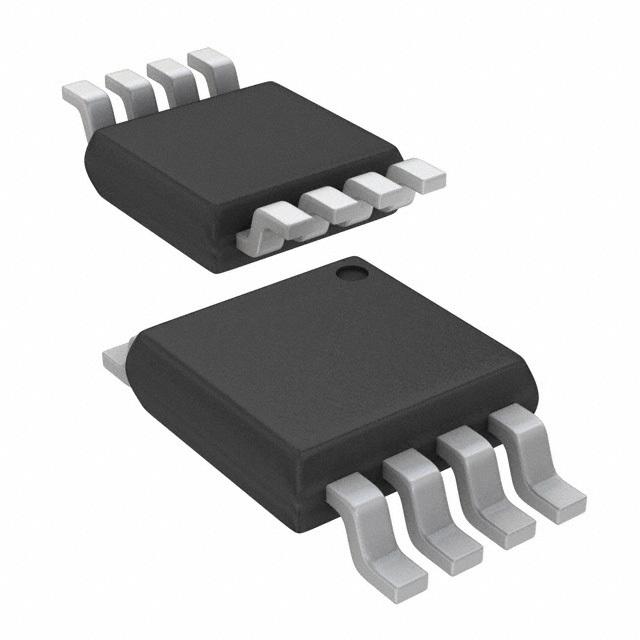

Image is for your reference only,please check specifications for details

TLV2316IDGKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC5741639
Category:
Operational Amplifier, OP Amp IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLV2316IDGKR Operational Amplifier, RRIO, 2 Amplifier, 10MHz, 6V/µs, ± 0.9V to ± 2.75V, 1.8V to 5.5V, VSSOP
Stock Locations:
Availability:
1,456 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.63

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV316 (single), TLV2316 (dual), and TLV4316 (quad) devices comprise a family of general-purpose, low-power operational amplifiers. Features such as rail-to-rail input and output swings, low quiescent current (400 µA/ch typical) combined with a wide bandwidth of 10 MHz, and very-low noise (12 nV/√Hz at 1 kHz) make this family attractive for a variety of applications that require a good balance between cost and performance. The low input bias current supports operational amplifiers that are used in applications with megaohm source impedances.
The robust design of the TLVx316 provides ease-of-use to the circuit designer–a unity-gain stable, integrated RFI/EMI rejection filter, no phase reversal in overdrive condition, and high electrostatic discharge (ESD) protection (4-kV HBM).
These devices are optimized for low-voltage operation as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V). This latest addition of low-voltage CMOS operational amplifiers to the portfolio, in conjunction with the TLVx313 and TLVx314 series, offer a family of bandwidth, noise, and power options to meet the needs of a wide variety of applications.

Show

TLV2316IDGKR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Current	400 µA
Number of Circuits	2 Circuit
Number of Positions	8 Position
Common Mode Rejection Ratio	72 dB
Input Offset Drift	2.00 µV/K
Bandwidth	10 MHz
Slew Rate	6.00 V/μs
Gain Bandwidth Product	10 MHz
Input Offset Voltage	750 µV
Input Bias Current	10 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	72 dB
Supply Voltage	1.8V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
