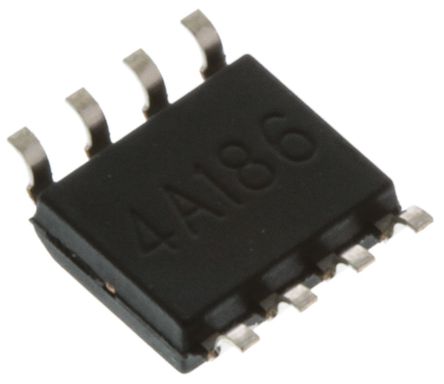

Image is for your reference only,please check specifications for details
- TLV2372IDR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC62920
-
Category:Operational Amplifiers(General Purpose)
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Низкая энергопотребление: 550 мкА/канал, частота сигнала 3 МГц. Операционные усилители типа RRIO, двойные, с возможностью входа и вывода на отметке “rail-to-rail”. Напряжение питания: 8 В/16 В; количество контактов: 8 Pin SOIC T/R.
-
Stock Locations:
-
Availability:7,419 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.17
Updated at 20/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Описание:
- Операционные усилители типа TLV237x обеспечивают возможность входа и вывода на отметке “rail-to-rail”. На широком диапазоне прочностных температур напряжение питания для работы устройств снижается до 2,7 В. Устройства также имеют ширину полосы пропускания 3 МГц при максимальном токе питания в 550 мкА. Рекомендуемое максимальное напряжение питания составляет 16 В, что позволяет использовать устройства с напряжением питания от ±8 В до ±1,35 В при работе от различных аккумуляторов.
- Вход/выход на отметке “rail-to-rail”;
- Широкая полоса пропускания: 3 МГц;
- Высокий скорострел: 2,4 В/мкс;
- Диапазон напряжений питания: 2,7 В – 16 В;
- Ток питания: 550 мкА/канал;
- Режим потребления низкой энергии;
- Максимальное значение тока нагрузки при отключении: 25 мкА/канал;
- Напряжение шума входного сигнала: 39 нВ/√Гц;
- Ток предварительной настройки входного сигнала: 1 пикоампер;
- Диапазон температур для работы устройств: от -40°C до 125°C (промышленный класс);
- Ультрамаленькое корпусное исполнение;
- Конфигурации с 5 или 6 контактами: SOT-23 (TLV2370/1);
- Конфигурации с 8 или 10 контактами: MSOP (TLV2372/3).
TLV2372IDR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Output Current | 8mA @5V |
| Supply Current | 750 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 710 mW |
| Common Mode Rejection Ratio | 55 dB |
| Input Offset Drift | 2.00 µV/K |
| Bandwidth | 2.4 MHz |
| Slew Rate | 2.40 V/μs |
| Gain Bandwidth Product | 3 MHz |
| Input Offset Voltage | 2 mV |
| Input Bias Current | 1 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 3 MHz |
| Power Dissipation (Max) | 710 mW |
| Minimum CMRR Range | 55 dB |
| Show | |
| Size-Length | 4.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
