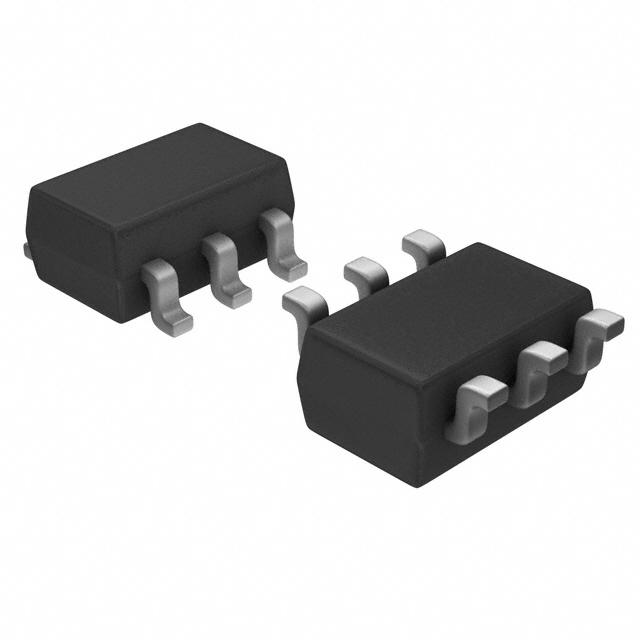

Image is for your reference only,please check specifications for details

TLV2460IDBVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC15811082
Category:
Operational Amplifier, OP Amp IC
Package:
SOT-23-6
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLV2460IDBVT Operational Amplifier, Single, 1 Amplifier, 6.4MHz, 1.6V/µs, 2.7V to 6V, SOT-23, 6Pins
Stock Locations:
Availability:
322 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.05

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV2460IDBVT is a single low power Operational Amplifier with shutdown function, rail-to-rail input/output. The input common-mode voltage range extends beyond the supply rails for maximum dynamic range in low-voltage systems. The amplifier output has rail-to-rail performance with high-output-drive capability, solving one of the limitations of older rail-to-rail input/output operational amplifier. This rail-to-rail dynamic range and high output drive make the TLV246x ideal for buffering analog-to-digital converters. The operational amplifier has 6.4MHz of bandwidth and 1.6V/µs of slew rate with only 500µA of supply current, providing good AC performance with low power consumption. Three members of the family offer a shutdown terminal, which places the amplifier in an ultralow supply current mode (IDD=0.3µA/channel). While in shutdown, the operational-amplifier output is placed in a high-impedance state.
Universal operational amplifier EVM
±80mA Output drive capability
500µA/channel Supply current
100µV Input offset voltage
11nV/√Hz Input noise voltage
0.3µA/channel Micropower shutdown mode
Green product and no Sb/Br

Show

TLV2460IDBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Output Current	80mA @5V
Supply Current	550 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Power Dissipation	0.425 W
Common Mode Rejection Ratio	71 dB
Input Offset Drift	2.00 µV/K
Bandwidth	6.4 MHz
Slew Rate	1.60 V/μs
Gain Bandwidth Product	6.4 MHz
Thermal Shutdown	No
Input Offset Voltage	500 µV
Input Bias Current	1.3 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	6.4 MHz
Power Dissipation (Max)	425 mW
Minimum CMRR Range	71 dB
Supply Voltage	2.7V ~ 6V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
