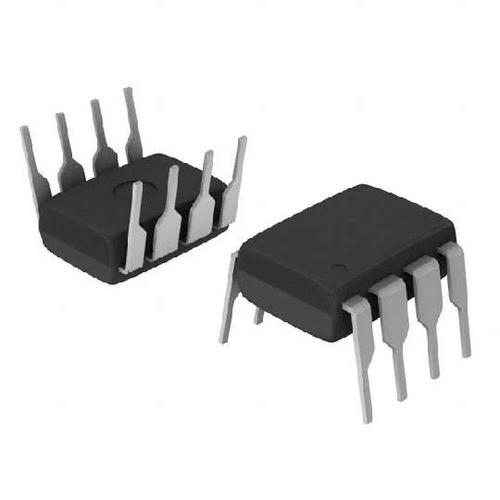

TLV2472IP - TI
Manufacturer:
TI
ManyChip's Part#:
MC61700639
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLV2472IP Operational Amplifier, Dual, 2 Amplifier, 2.8MHz, 1.4V/µs, ± 1.35V to ± 3V, DIP, 8Pins
Stock Locations:
Availability:
306 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.04

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV247x is a family of CMOS rail-to-rail input/ output operational amplifiers that establishes a new performance point for supply current versus ac performance. These devices consume just 600µA/channel while offering 2.8MHz of gain-bandwidth product. Along with increased ac performance, the amplifier provides high output drive capability, solving a major shortcoming of older micropower operational amplifiers. The TLV247x can swing to within 180mV of each supply rail while driving a 10mA load. For non-RRO applications, the TLV247x can supply ±35mA at 500mV off the rail. Both the inputs and outputs swing rail-to-rail for increased dynamic range in low-voltage applications. This performance makes the TLV247x family ideal for sensor interface, portable medical equipment, and other data acquisition circuits.

Show

TLV2472IP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Output Current	35mA @5V
Supply Current	600 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	1.2 W
Common Mode Rejection Ratio	64 dB
Input Offset Drift	400 nV/K
Bandwidth	2.8 MHz
Slew Rate	1.50 V/μs
Gain Bandwidth Product	2.8 MHz
Thermal Shutdown	No
Input Offset Voltage	250 µV
Input Bias Current	2.5 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	2.8 MHz
Power Dissipation (Max)	1200 mW
Minimum CMRR Range	64 dB
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
