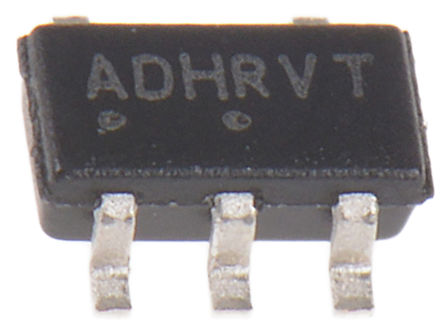

Image is for your reference only,please check specifications for details

TLV271SN2T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC38660548
Category:
Operational Amplifier, OP Amp IC
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR TLV271SN2T1G Operational Amplifier, Single, 3MHz, 1 Amplifier, 2.4V/s, 2.7V to 16V, SOT-23, 5Pins
Stock Locations:
Availability:
10,289 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.05

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV271SN2T1G is a single Operational Amplifier provides rail-to-rail output operation. The output can swing within 320mV to the positive rail and 50mV to the negative rail. This rail-to-rail operation enables the user to make optimal use of the entire supply voltage range while taking advantage of 3MHz bandwidth. The TLV271 can operate on supply voltage as low as 2.7V over the temperature range of -40 to 105°C. The high bandwidth provides a slew rate of 2.4V/µs while only consuming 550µA of quiescent current. Likewise the TLV271 can run on a supply voltage as high as 16V making it ideal for a broad range of battery-operated applications. Since this is a CMOS device it has high input impedance and low bias currents making it ideal for interfacing to a wide variety of signal sensors.
45pA Low input bias current
±10mA Maximum input current
±100mA Output current
200mW Continuous total power dissipation

Show

TLV271SN2T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Halogen Free Status	Halogen Free
Output Current	8mA @5V
Supply Current	490 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Power Dissipation	200 mW
Common Mode Rejection Ratio	140 dB
Bandwidth	3 MHz
Slew Rate	2.40 V/μs
Gain Bandwidth Product	3 MHz
Input Offset Voltage	500 µV
Input Bias Current	1 pA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3 MHz
Power Dissipation (Max)	200 mW
Minimum CMRR Range	58 dB
Supply Voltage	2.7V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
