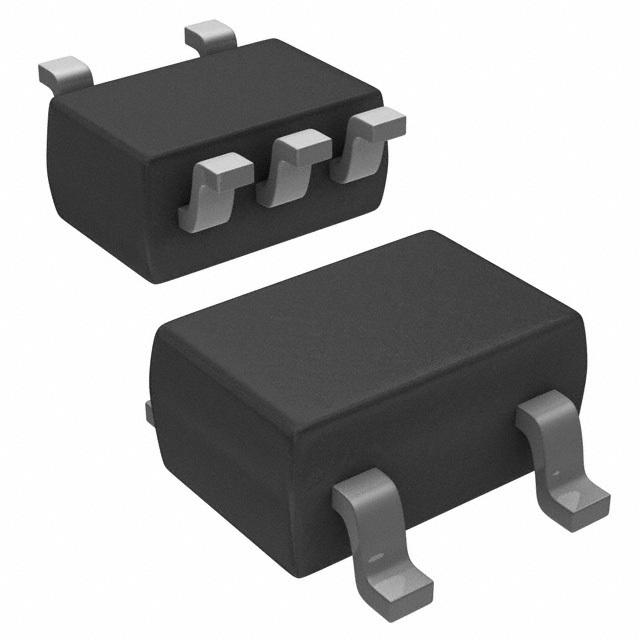

Image is for your reference only,please check specifications for details
- TLV521DCKR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC3926230
-
Category:Amplifier, Buffer IC
-
Package:SC-70-5
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifiers - Op Amps TLV521 350nA Nanopower, Single, RRIO, CMOS Input, Cost-Optimized Operational Amplifier 5-SC70 -40℃ to 125℃
-
Stock Locations:
-
Availability:233 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.28
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLV521 350 nA nanopower op amp offers optimum price performance in TIs nanopower family of operational amplifiers. The TLV521 has a carefully designed CMOS input stage enabling very low Ibias of 1 pA, thereby reducing IBIAS and IOS errors that would otherwise impact sensitive applications like Megaohm resistance, high-impedance photodiode and charge sense situations. Additionally, built-in EMI protection reduces sensitivity to unwanted RF signals from sources like mobile phones and RFID readers.
- The TLV521 is offered in the 5-pin SC70 package, and operates from –40°C to 125°C.
TLV521DCKR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SC-70-5 |
| Output Current | 12mA @3.3V |
| Supply Current | 350 nA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Common Mode Rejection Ratio | 70 dB |
| Input Offset Drift | 1.50 µV/K |
| Slew Rate | 2.90 mV/μs |
| Gain Bandwidth Product | 6 kHz |
| Input Offset Voltage | 100 µV |
| Input Bias Current | 1 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Minimum CMRR Range | 70 dB |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.7 V |
| Show | |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
