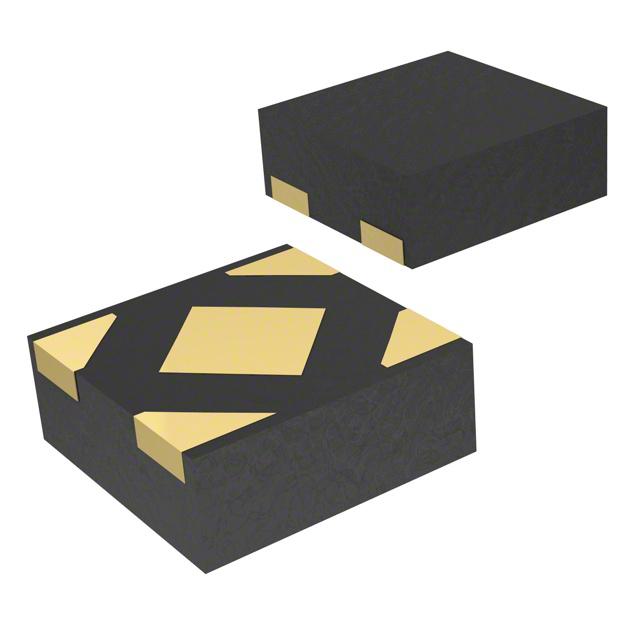

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Stable Operation With or Without Capacitors * Foldback Overcurrent Protection * Packages: * 1-mm × 1-mm 4-Pin X2SON * 5-Pin SOT-23 * Very Low Dropout: 230 mV at 150 mA * Accuracy: 1% * Low IQ: 50 µA * Input Voltage Range: 1.4 V to 5.5 V * Available in Fixed-Output Voltages: 1 V to 3.3 V * High PSRR: 65 dB at 1 kHz * Active Output Discharge (P Version Only)
TLV71333PDQNR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | XDFN-4 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 150 mA |
| Quiescent Current | 0.05 mA |
| Output Capacitor Type | Ceramic |
| voltage rating | 0.23V @150mA,0.046V @30mA |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 1.4 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 0.15 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Input Voltage | 5.5V ~ 1.4V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
