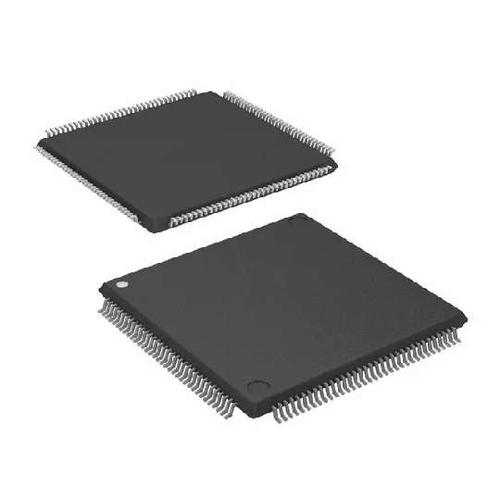

Image is for your reference only,please check specifications for details
- TM4C123GH6PGEI - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC49855903
-
Category:Microcontroller, MCU IC
-
Package:LQFP-144
-
Datasheet:Datasheet 3D Model
-
Description:MCU 32Bit ARM Cortex M4F RISC 256KB Flash 1.2V/3.3V 144Pin LQFP Tray
-
Stock Locations:
-
Availability:1,000 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 106.45
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TM4C123GH6PGEI is a 32-bit Microcontroller provide a high-performance ARM Cortex-M-based architecture with a broad set of integration capabilities and a strong ecosystem of software and development tools. Targeting performance and flexibility, the Tiva™ C series architecture offers a 80MHz Cortex-M with FPU, a variety of integrated memories and multiple programmable GPIO. Tiva™ C series devices offer consumers compelling cost-effective solutions by integrating application-specific peripherals and providing a comprehensive library of software tools which minimize board costs and design-cycle time. The Tiva™ C series microcontrollers are the leading choice in high-performance 32-bit applications. The device incorporates on-chip memory featuring 256kB single-cycle flash up to 40MHz (a prefetch buffer improves performance above 40MHz), 32kB single-cycle SRAM, internal ROM loaded with StellarisWare® software and 2kB EEPROM.
- 32-bit ARM Cortex-M4 80MHz processor core
- System timer (SysTick)
- Integrated nested vectored interrupt controller (NVIC)
- Wake-up interrupt controller (WIC) with clock gating
- Memory protection unit (MPU)
- IEEE754-compliant single-precision floating-point unit (FPU)
- Embedded trace macro and trace port
- System control block (SCB)
- Thumb-2 instruction set
- Two controller area network (CAN) module - CAN protocol version 2.0 part A/B
- USB controller with USB 2.0 full-speed (12Mbps) and low-speed (1.5Mbps) operation
- USB OTG/Host/Device mode
- Eight UARTs with IrDA, 9-bit and ISO 7816 support
- one UART with modem status and modem flow control
- 6 I2C modules - providing standard (100Kbps) and fast (400Kbps) transmission
- ARM PrimeCell® 32-channel configurable µDMA controller
- 3 Analog comparators and 16 Digital comparators
- On-chip voltage regulator
- Two ARM FiRM-compliant watchdog timers
- Six 32-bit General-purpose timers (up to twelve 16-bit)
TM4C123GH6PGEI Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 144 Pin |
| Case/Package | LQFP-144 |
| Frequency | 80 MHz |
| Supply Voltage (DC) | 1.32V (min) |
| Number of Positions | 144 Position |
| Clock Speed | 80.0MHz (max) |
| RAM Memory Size | 32 KB |
| Number of Bits | 32 Bit |
| FLASH Memory Size | 256 KB |
| Number of UARTs | 8 UART |
| Number of ADCs | 2 ADC |
| Number of Inputs and Outputs | 105 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 1.32 V |
| Supply Voltage (Min) | 1.32 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
