Description
- Introduction
- The TMS320F2809, TMS320F2808, TMS320F2806, TMS320F2802, TMS320F2801, TMS320F28015, TMS320F28016, TMS320C2802, and TMS320C2801, devices, members of the TMS320C28x™ DSP generation, are highly integrated, high-performance solutions for demanding control applications.
- Features
- • High-Performance Static CMOS Technology
- – 100 MHz (10-ns Cycle Time)
- – 60 MHz (16.67-ns Cycle Time)
- – Low-Power (1.8-V Core, 3.3-V I/O) Design
- • JTAG Boundary Scan Support(1)
- • High-Performance 32-Bit CPU (TMS320C28x)
- – 16 x 16 and 32 x 32 MAC Operations
- – 16 x 16 Dual MAC
- – Harvard Bus Architecture
- – Atomic Operations
- – Fast Interrupt Response and Processing
- – Unified Memory Programming Model
- – Code-Efficient (in C/C++ and Assembly)
- • On-Chip Memory
- – F2809: 128K X 16 Flash, 18K X 16 SARAM
- F2808: 64K X 16 Flash, 18K X 16 SARAM
- F2806: 32K X 16 Flash, 10K X 16 SARAM
- F2802: 32K X 16 Flash, 6K X 16 SARAM
- F2801: 16K X 16 Flash, 6K X 16 SARAM
- F2801x: 16K X 16 Flash, 6K X 16 SARAM
- – 1K x 16 OTP ROM (Flash Devices Only)
- – C2802: 32K X 16 ROM, 6K X 16 SARAM
- C2801: 16K X 16 ROM, 6K X 16 SARAM
- • Boot ROM (4K x 16)
- – With Software Boot Modes (via SCI, SPI, CAN, I2C, and Parallel I/O)
- – Standard Math Tables
- • Clock and System Control
- – Dynamic PLL Ratio Changes Supported
- – On-Chip Oscillator
- – Watchdog Timer Module
- • Any GPIO A Pin Can Be Connected to One of the Three External Core Interrupts
- • Peripheral Interrupt Expansion (PIE) Block That Supports All 43 Peripheral Interrupts
- • 128-Bit Security Key/Lock
- – Protects Flash/OTP/L0/L1 Blocks
- – Prevents Firmware Reverse Engineering
- • Three 32-Bit CPU Timers
- • Enhanced Control Peripherals
- – Up to 16 PWM Outputs
- – Up to 6 HRPWM Outputs With 150 ps MEP Resolution
- – Up to Four Capture Inputs
- – Up to Two Quadrature Encoder Interfaces
- – Up to Six 32-bit/Six 16-bit Timers
- • Serial Port Peripherals
- – Up to 4 SPI Modules
- – Up to 2 SCI (UART) Modules
- – Up to 2 CAN Modules
- – One Inter-Integrated-Circuit (I2C) Bus
- • 12-Bit ADC, 16 Channels
- – 2 x 8 Channel Input Multiplexer
- – Two Sample-and-Hold
- – Single/Simultaneous Conversions
- – Fast Conversion Rate:
- 80 ns - 12.5 MSPS (F2809 only)
- 160 ns - 6.25 MSPS (280x)
- 267 ns - 3.75 MSPS (F2801x)
- – Internal or External Reference

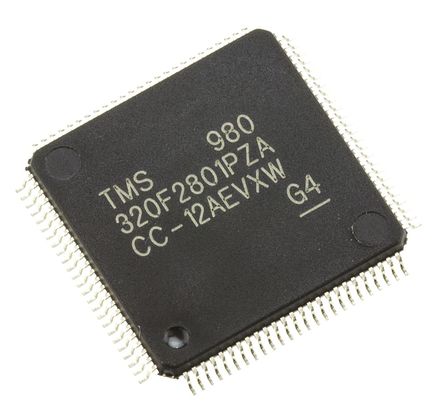

TMS320F2801PZA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | LQFP-100 |
| Frequency | 100 MHz |
| Number of Positions | 100 Position |
| Clock Speed | 100 MHz |
| RAM Memory Size | 6K x 16 |
| FLASH Memory Size | 32 KB |
| Number of I/O Pins | 35 IO |
| Number of UARTs | 1 UART |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 35 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 1.89 V |
| Supply Voltage (Min) | 1.71 V |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 14 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | 3A991.a.2 |
