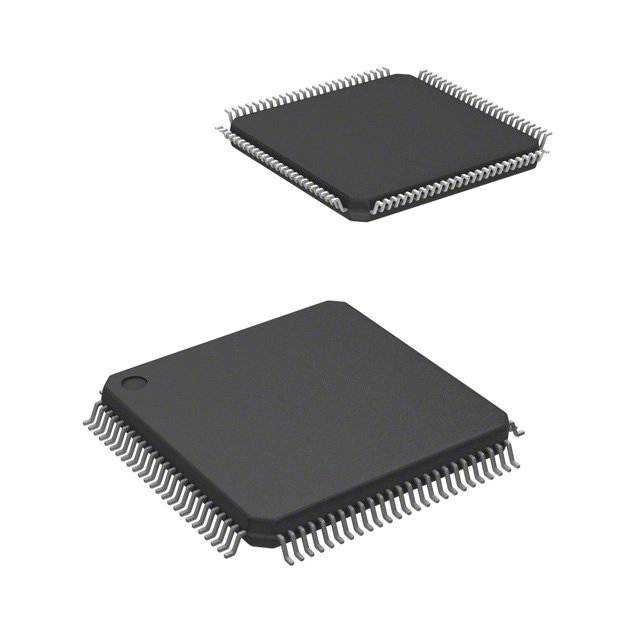

TMS320F28069FPZT - TI
Manufacturer:
TI
ManyChip's Part#:
MC3095363
Category:
32-Bit Microcontroller IC
Package:
LQFP-100
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TMS320F28069FPZT 32Bit Microcontroller, Piccolo, C2000, 90MHz, 256KB, 96KB, 100Pins, LQFP
Stock Locations:
Availability:
4,348 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 237.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TMS320F28069FPZT is a 32-bit Piccolo Microcontrollers provides the power of the C28x core and CLA coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code and also provides a high level of analog integration. An internal voltage regulator allows for single-rail operation. Enhancements have been made to the high-resolution pulse width modulator (HRPWM) module to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the ePWM outputs. The ADC converts from 0 to 3.3V fixed full-scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead and latency.
High-efficiency 32-bit CPU ( TMS320C28x™)
16 x 16 and 32 x 32 MAC operations
16 x 16 Dual MAC
Harvard bus architecture
Atomic operations
Fast interrupt response and processing
Unified memory programming model
Code-efficient (in C/C++ and assembly)
Floating-point unit (FPU)
Viterbi, complex math, CRC unit (VCU)
6-channel direct memory access (DMA)
No power sequencing requirement
Integrated power-on and brown-out resets
Endianness - little endian
JTAG boundary scan support
Two internal zero-pin oscillators
On-chip crystal Oscillator/External clock input
Watchdog timer module
Missing clock detection circuitry
Peripheral interrupt expansion (PIE) block that supports all peripheral interrupts

Show

TMS320F28069FPZT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Frequency	90 MHz
Supply Voltage (DC)	2.97V (min)
Number of Positions	100 Position
Clock Speed	90.0 MHz
RAM Memory Size	96 KB
Number of Bits	32 Bit
FLASH Memory Size	128 KB
Number of UARTs	2 UART
Number of ADCs	1 ADC
Number of Inputs and Outputs	54 Input IO
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	3 DAC
Supply Voltage (Max)	3.63 V
Supply Voltage (Min)	2.97 V
	Show
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
