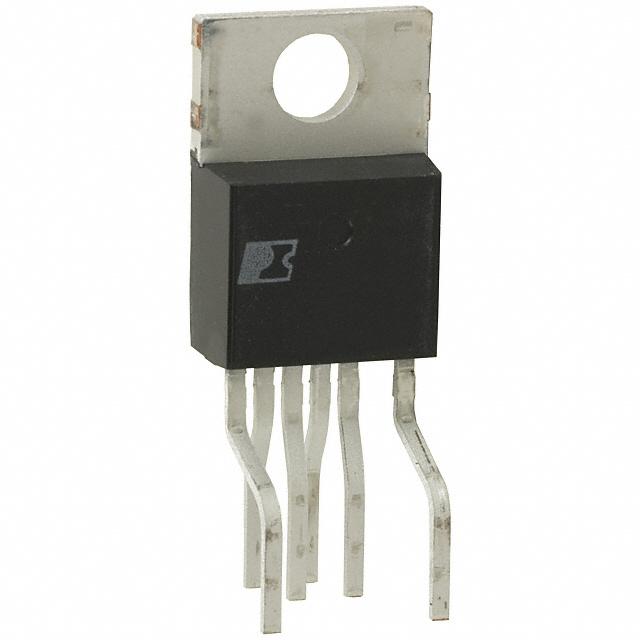

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Multi-mode operation maximizes efficiency at all loads * New eSIP-7F and eSIP-7C packages * Low thermal impedance junction-to-case (2 °C per watt) * Low height is ideal for adapters where space is limited * Simple mounting using a clip to aid low cost manufacturing * Horizontal eSIP-7F package ideal for ultra low height adapter and monitor applications * Extended package creepage distance from DRAIN pin to adjacent pin and to heat sink * No heat sink required up to 35 W using P, G and M packages with universal input voltage and up to 48 W at 230 VAC * Output overvoltage protection (OVP) is user programmable for latching/non-latching shutdown with fast AC reset * Allows both primary and secondary sensing * Line undervoltage (UV) detection prevents turn-off glitches * Line overvoltage (OV) shutdown extends line surge limit * Accurate programmable current limit * Optimized line feed-forward for line ripple rejection * 132 kHz frequency (254Y-258Y and all E/L packages) reduces transformer and power supply size * Half frequency option for video applications * Frequency jittering reduces EMI filter cost

Show

TOP258YN Specifications
