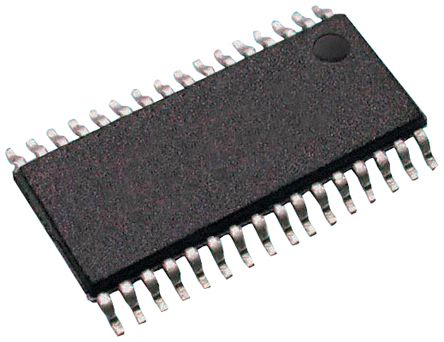

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPA3130D2DAP is a stereo efficient Digital Amplifier Power Stage for driving speakers up to 100W/2R in mono. The high efficiency of the TPA3130D2 allows it to do 2 x 15W without external heat sink on a single layer PCB. This device shares the same footprint enabling a single PCB to be used across different power levels. The TPA31xxD2 advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences, this is achieved together with an option of either master or slave option, making it possible to synchronize multiple devices. The TPA31xxD2 device is fully protected against faults with short-circuit protection and thermal protection as well as overvoltage, undervoltage and DC protection. Faults are reported back to the processor to prevent devices from being damaged during overload conditions.
Efficient class-D operation
Multiple switching frequencies - Up to 1.2MHz switching frequency
Advanced modulation schemes
Master and slave synchronization
Feedback power-stage architecture with high PSRR reduces PSU requirements
Programmable power limit
Differential and single-ended inputs
Stereo and mono mode with single-filter mono configuration
Single power supply reduces component count
Green product and no Sb/Br

Show

TPA3130D2DAP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	HTSSOP-32
Number of Circuits	1 Circuit
Number of Channels	2 Channel
Number of Positions	32 Position
Output Power	15 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5V ~ 26V
	Show
Size-Length	11.1 mm
Size-Width	6.2 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
ECCN Code	EAR99
