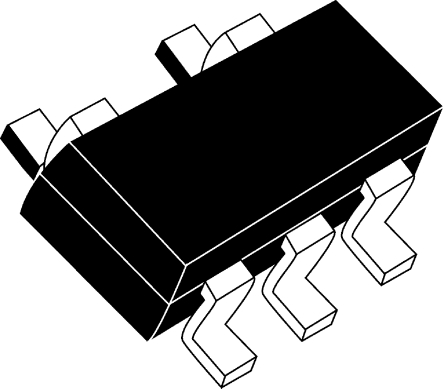

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPD4E002DRLR is a quad low-capacitance ESD Protection TVS Array designed to protect up to four lines against electrostatic discharge (ESD) transients. The monolithic circuit design allows superior capacitance matching between the channels and reduced crosstalk. The device is ideal for applications where both reduced line capacitance and board space saving are required.
- ±15kV IEC 61000-4-2 Contact discharge ESD protection
- 2.5A Peak pulse current (8/20µs pulse) IEC 61000-4-5 surge protection
- ±15kV Human body model (HBM) ANSI/ESDA/JEDEC JS-001
- 11pF I/O capacitance
- <100nA Low leakage current
- High Integration
- Suitable for high-density boards
- -40 to 85°C Operating temperature range
TPD4E002DRLR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-553 |
| Capacitance | 11 pF |
| Breakdown Voltage | 6.00 V |
| Number of Channels | 4 Channel |
| Number of Positions | 5 Position |
| Power Dissipation | 35 W |
| Test Current | 1 mA |
| Peak Pulse Power | 35 W |
| Min Breakdown Voltage | 6.1 V |
| Reverse Breakdown Voltage | 6.1 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Height | 0.55 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
