TPDV1225 ST Microelectronics - Discretes

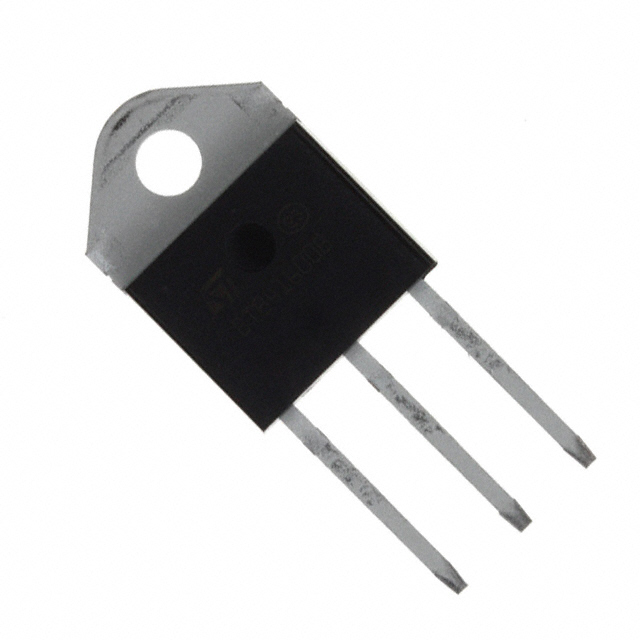

Image is for your reference only,please check specifications for details

TPDV1225 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC532413224
Category:
Discretes
Datasheet:
Datasheet 3D Model
Description:
Тиристор-альтеристор 1,2 кВт, 390 А, 3 контакта (3+штыки), корпус верхнего типа.
Stock Locations:
Availability:
313 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Описание
Серия TPDVxx25 использует высокопроизводительную технологию альтеристора. Благодаря очень высоким уровням коммутации и способности к притоку высоких токов, эти устройства отлично подходят для управления электропитанием индуктивных и резистивных нагрузок (двигатели, трансформаторы...), особенно в трехфазной сети. Целевые применения включают системы отопления, стартеры двигателей и управление скоростью индукционных двигателей (особенно для вентиляторов).
Характеристики
■ Ток в состоянии накопления (IT(RMS)): 25 А
■ Максимальное блокирующее напряжение (VDRM/VRRM): 1200 В
■ Ток у гаттера (IGT): 150 мА
■ Коммутация при 10 В/мкс: до 88 А/мс
■ Иммунитет к шуму: 2 кВ/мкс
■ Изоляционный корпус:
– 2,500 В рms (UL-признано: E81734).
