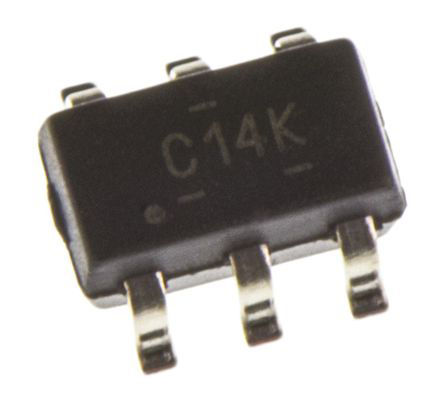

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPL5010DDCT is an Ultralow Power Timer with watchdog functionality and manual reset. Watchdog feature is ideal for system wake up in duty cycled or battery powered applications. In such systems the µC timer can be used for system wake-up, but if the timer sleep current is high, up to 60 to 80% of the total system current can be consumed by the µC timer in this sleep mode. Consuming only 35nA, the TPL5010 can replace the functionality of the integrated µC timer and allow the µC to be placed in a much lower power mode. Such power savings enable the use of significantly smaller batteries making it well suited for energy harvesting or wireless sensor applications. The TPL5010 provides selectable timing intervals from 100ms to 7200s and is designed for interrupt-driven applications. Some standards (such as EN50271) require implementation of a watchdog for safety and the TPL5010 realizes this watchdog function at almost no additional power consumption.
35nA Typical current consumption at 2.5V
100ms to 7200s Selectable time intervals
1% Typical timer accuracy
Resistor selectable time interval
Watchdog functionality
Manual reset
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPL5010DDCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Supply Voltage (DC)	1.80V (min)
Supply Current	35 nA
Number of Positions	6 Position
Quiescent Current	35.0 nA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
