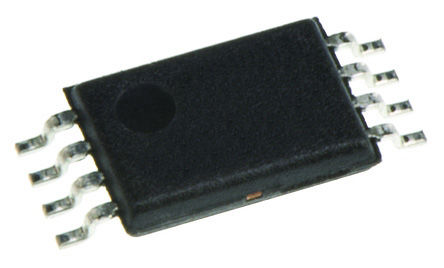

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS2111APW power multiplexer, developed by Texas Instruments, is perfect for power distribution across multiple different feeders. This power mux"s single output can produce a current up to 1.25 A. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This power mux has a minimum operating temperature of -40 °C and a maximum of 85 °C.
TPS2111APW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 5.50 V |
| Output Current | 1.25 A |
| Supply Current | 55 µA |
| Power Dissipation | 387 mW |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 1.5 V |
| Output Current (Max) | 1.25 A |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 387 mW |
| Supply Voltage | 2.8V ~ 5.5V |
| Input Voltage | 1.5V ~ 5.5V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
