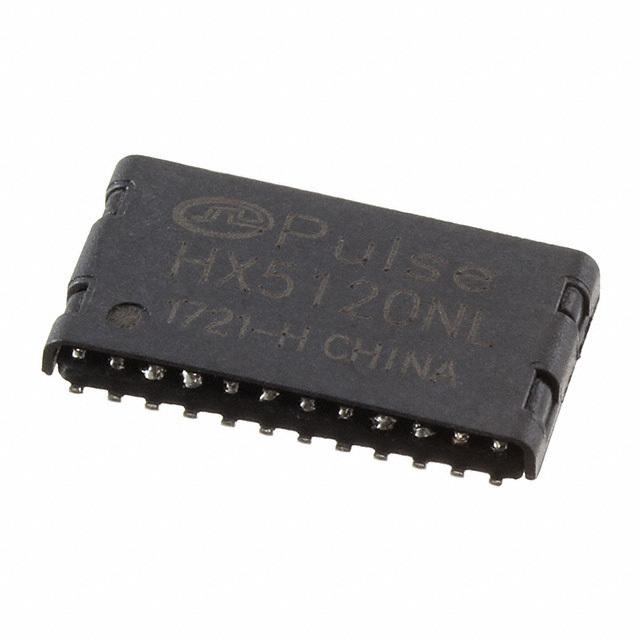

Image is for your reference only,please check specifications for details
- HX5120NLT - Pulse Electronics
-
Manufacturer:Pulse Electronics
-
ManyChip's Part#:MC3194833
-
Category:Transformer
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:Telecom Transformer 1CT:1CT 0.65Ω Prim. DCR 0.65Ω Sec. DCR 24Term. Gull Wing SMD
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- HX5120NLT is manufactured by Pulse Electronics and is categorized in the Pulse Transformers category. HX5120NLT is described as PULSE XFMR 1 CT:1CT TX/RX 350UH. Perfect Parts is a supplier of Transformers and other Miscellaneous.
HX5120NLT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SMD |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Minimum CMRR Range | -42dB @2MHz |
| Show | |
| Size-Length | 16.51 mm |
| Size-Width | 9.14 mm |
| Size-Height | 2.08 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
