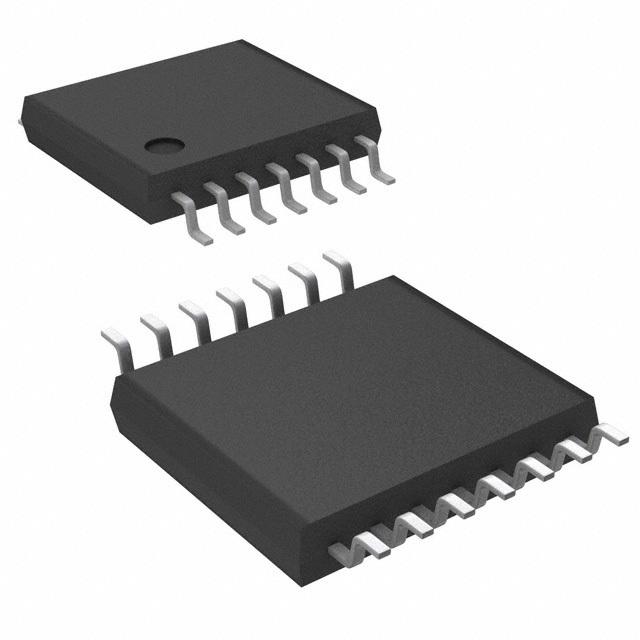

Image is for your reference only,please check specifications for details
- TPS23753APWR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC126244
-
Category:Battery Management IC
-
Package:TSSOP-14
-
Datasheet:Datasheet 3D Model
-
Description:Power Over Ethernet (POE) Controller, 57V/0.85mA, 248kHz Switch/Clock, 9V UVLO Threshold, TSSOP-14
-
Stock Locations:
-
Availability:9,000 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.9
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Distribute power in the most cost-effective way by using Texas Instruments" TPS23753APWR power over Ethernet controller. It only needs a voltage of at least 0 V while not exceeding 57 V to effectively power your circuit. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This POE controller has a minimum operating temperature of -40 °C and a maximum of 125 °C. This POE controller"s maximum duty cycle is 78.5(Typ) %.
TPS23753APWR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | TSSOP-14 |
| Frequency | 248 kHz |
| Input Voltage (DC) | 57.0 V |
| Supply Current | 580 µA |
| Number of Channels | 1 Channel |
| Number of Positions | 14 Position |
| Duty Cycle | 78.5 % |
| Input Voltage (Max) | 57 V |
| Input Voltage (Min) | 0 V |
| Input Power (Max) | 13 W |
| Input Power (Max) | 13 W |
| Maximum Duty Cycle | 78.5 % |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 0V ~ 57V |
| Input Voltage | 57 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
