Description
- DESCRIPTION
- The TPS2412/13 controller, in conjunction with an external N-channel MOSFET, emulates the function
- of a low forward voltage diode. The TPS2412/13 can be used to combine multiple power supplies to a
- common bus in an N+1 configuration, or to combine redundant input power buses. The TPS2412
- provides a linear turn-on control while the TPS2413 has an on/off control method.
- FEATURES
- • Control External FET for N+1 and ORing
- • Wide Supply Voltage Range of 3 V to 16.5 V
- • Controls Buses From 0.8 V to 16.5 V
- • Linear or On/Off Control Method
- • Internal Charge Pump for N-Channel MOSFET
- • Rapid Device Turnoff Protects Bus Integrity
- • Positive Gate Control on Hot Insertion
- • Soft Turn on Reduces Bus Transients
- • Industrial Temperature Range: –40°C to 85°C
- • Industry-Standard 8-pin TSSOP Package
- APPLICATIONS
- • N+1 Power Supplies
- • Server Blades
- • Telecom Systems
- • High Availability Systems

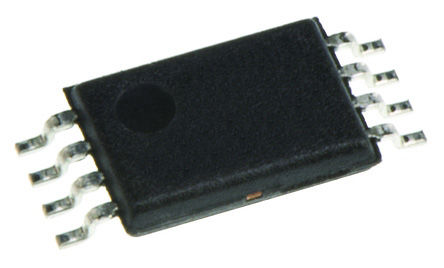

TPS2413PW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 16.5 V |
| Output Voltage | 10.2 V |
| Output Current | 0.00029 A |
| Supply Current | 4.25 mA |
| Number of Channels | 1 Channel |
| Power Dissipation | 250 mW |
| Quiescent Current | 1.20 mA |
| Input Voltage (Max) | 16.5 V |
| Input Voltage (Min) | 3 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 250 mW |
| Supply Voltage | 3V ~ 16.5V |
| Supply Voltage (Max) | 16.5 V |
| Input Voltage | 0.8V ~ 16.5V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
