TPS40060PWP TI - DC to DC Converter

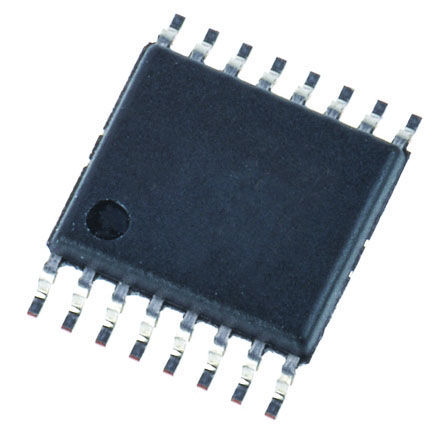

Image is for your reference only,please check specifications for details

TPS40060PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC7932963
Category:
DC to DC Converter
Package:
HTSSOP-16
Datasheet:
Datasheet 3D Model
Description:
Контроллер DC-DC (внешний ключ), широкий вход (10–55 В), до 1 МГц, синхронный понижающий контроллер, только источник. Контроллер DC-DC, однофазный, понижающий, 1000 кГц, 16 выводов HTSSOP EP, трубка
Stock Locations:
Availability:
254 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 120.43

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Рабочее входное напряжение от 10 В до 55 В * Компенсация с прямой связью по входному напряжению * Программируемый контроллер с управлением по напряжению, фиксированной частотой до 1 МГц * Выходы внутренних драйверов затворов для верхнего P-канального и синхронного N-канального MOSFET-транзисторов * Корпус PowerPAD с 16 выводами (θJC = 2 °C/Вт) * Тепловая защита (отключение при перегреве) * Возможность внешней синхронизации * Программируемая защита от короткого замыкания с контролем тока верхнего плеча * Программируемый плавный пуск с замкнутым контуром регулирования * TPS40060 — только источник тока / TPS40061 — источник/приёмник тока

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Supply Voltage (DC)	10.0V (min)
Number of Outputs	1 Output
Output Voltage	0.7V ~ 45V
Output Current	10.0 A, 200 A (max)
Quiescent Current	1.50 mA
Number of Regulated Outputs	1 Output
Switching Frequency	1MHz (MAX)
Thermal Shutdown	Yes
Topology	Buck
Duty Cycle	98 %
Input Voltage (Max)	55 V
Input Voltage (Min)	10 V
Output Voltage (Max)	6 V
Maximum Duty Cycle	98 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	10V ~ 55V
Supply Voltage (Max)	55 V
Supply Voltage (Min)	10 V
Input Voltage	10V ~ 55V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
