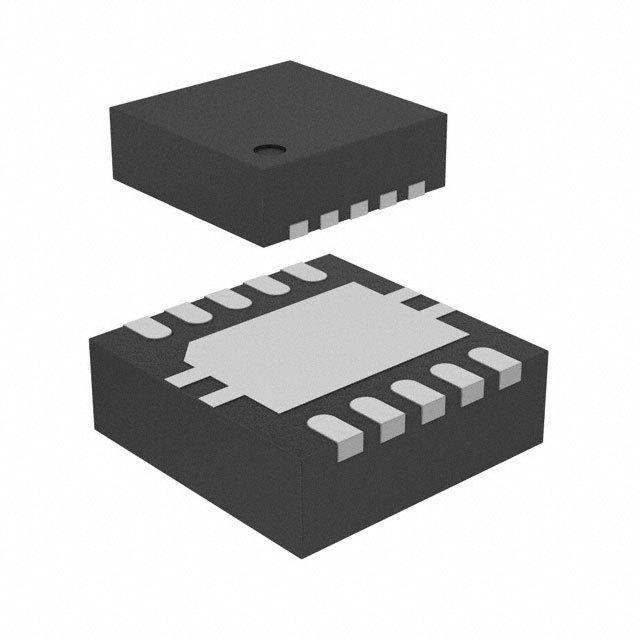

Image is for your reference only,please check specifications for details
- TPS40193DRCT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8863363
-
Category:DC-DC Converters
-
Package:VFDFN-10
-
Datasheet:Datasheet 3D Model
-
Description:DC-DC-контроллер (внешний переключатель) с входным напряжением от 4,5 В до 18 В, низкий количество выводов, синхронный конвертер тока с поддержкой состояния “Power Good”. Один выход. Напряжение выхода: от 0,591 В до 14,4 В. Это лучший вариант управления питанием. Входное напряжение составляет от 4,5 В до 18 В. Частота работы регулятора составляет 360 кГц. Продукт упаковывается в специальную коробку для безопасной доставки и удобства установки компонентов. Диапазон рабочих температур – от -40 °C до 125 °C.
-
Stock Locations:
-
Availability:75 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.23
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Синхронный конвертер тока TPS40193DRCT от Texas Instruments позволяет изменять уровень напряжения DC на другой. Выходной ток составляет 20 А (максимальное значение). У этого конвертера тока есть один выход. Напряжение выхода составляет от 0,591 В до 14,4 В. Это лучший вариант управления питанием. Входное напряжение составляет от 4,5 В до 18 В. Частота работы регулятора – 360 кГц. Продукт упаковывается в специальную коробку для безопасной доставки и удобства установки компонентов. Диапазон рабочих температур – от -40 °C до 125 °C.
TPS40193DRCT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | VFDFN-10 |
| Frequency | 300 kHz |
| Supply Voltage (DC) | 4.50V (min) |
| Number of Outputs | 1 Output |
| Output Voltage | 0.591V ~ 14.4V |
| Output Current | 20 A |
| Number of Positions | 10 Position |
| Power Dissipation | 2610 mW |
| Quiescent Current | 2.50 mA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 360 kHz |
| Thermal Shutdown | Yes |
| Topology | Buck |
| Duty Cycle | 85 % |
| Input Voltage (Max) | 18 V |
| Input Voltage (Min) | 4.5 V |
| Output Current (Max) | 20 A |
| Maximum Duty Cycle | 0.85 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2610 mW |
| Supply Voltage | 4.5V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 4.5 V |
| Input Voltage | 4.5V ~ 18V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
