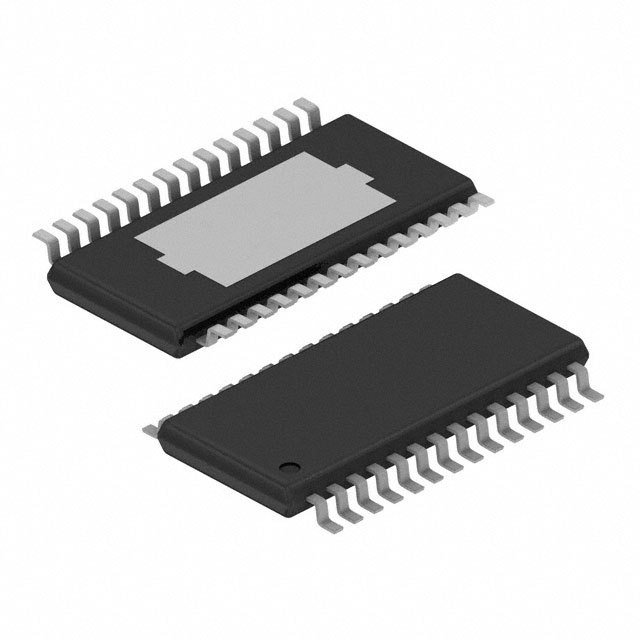

Image is for your reference only,please check specifications for details
- TPS4H160BQPWPRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC63059827
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:HTSSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:Power Switch ICs - Power Distribution 40V/160m Quad Channels Smart High-Side Switch 28-HTSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:1,136 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.18
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS4H160-Q1 device is fully protected quad-channel smart high-side switch with four integrated 160-mΩ NMOS power FETs.
- Full diagnostics and high-accuracy current sense enable intelligent control of the load.
- An external adjustable current limit improves the reliability of whole system by limiting the inrush or overload current.
TPS4H160BQPWPRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | HTSSOP-28 |
| Number of Outputs | 4 Output |
| Output Current | 25 mA |
| Input Voltage (Min) | 4 V |
| Output Current (Max) | 2.5 A |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Supply Voltage (Max) | 40 V |
| Supply Voltage (Min) | 3.4 V |
| Input Voltage | 40 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
