TPS51362RVER TI - DC-DC Converters - ManyChip Electronics

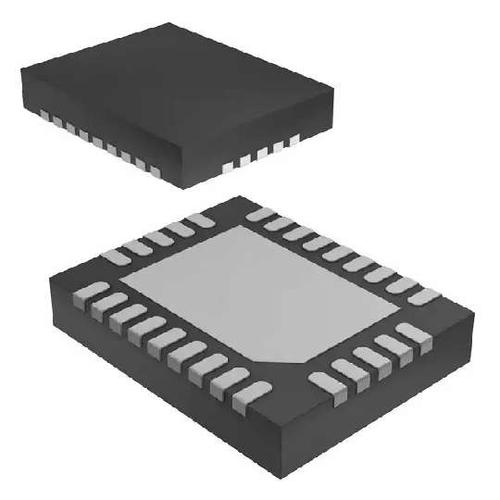

Image is for your reference only,please check specifications for details

TPS51362RVER - TI
Manufacturer:
TI
ManyChip's Part#:
MC42248196
Category:
DC-DC Converters
Package:
VQFN-28
Datasheet:
Datasheet 3D Model
Description:
Преобразователь DC-DC 3 В до 22 В с понижением напряжения, выходное напряжение 0,6 В до 2 В, мощность 10 А, корпус VQFN EP T/R, количество контактов 28.
Stock Locations:
Availability:
6,253 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.86

Updated at 20/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Диапазон входного напряжения: 3 В до 22 В * Диапазон выходного напряжения: 0,6 В до 2 В * Преобразователь с интегрированным FET мощностью 10 А * Минимальное количество внешних компонентов * Режим работы ULQ™-100 обеспечивает долгий срок службы батареи во время ожидания системы * Время плавного запуска можно настроить с помощью внешнего конденсатора * Частота переключения: 800 кГц * Архитектура D-CAP2™ позволяет использовать выходные конденсаторы типа POSCAP и всех типов MLCC * Интегрированное устройство для измерения сопротивления низшей линии с корректировкой по температуре для точной защиты OCL * Защита выходных сигналов OCL, OVP, UVP и UVLO * Термальный отключение (без запирания) * Функция разрядки выходного сигнала * Интегрированный переключатель MOSFET * Корпус 28-контактов, размеры 3,5 мм × 4,5 мм, тип корпуса RVE, QFN, припуск контактов 0,4 мм и высота 1 мм

Show

TPS51362RVER Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	VQFN-28
Number of Outputs	1 Output
Output Voltage	0.6V ~ 2V
Output Current	10 A
Quiescent Current	100 µA
Number of Regulated Outputs	1 Output
Switching Frequency	800 kHz
Topology	Buck
Input Voltage (Max)	22 V
Input Voltage (Min)	3 V
Output Voltage (Max)	2 V
Output Current (Max)	10 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-10 ℃
Input Voltage	22 V
	Show
Operating Temperature	-10℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
