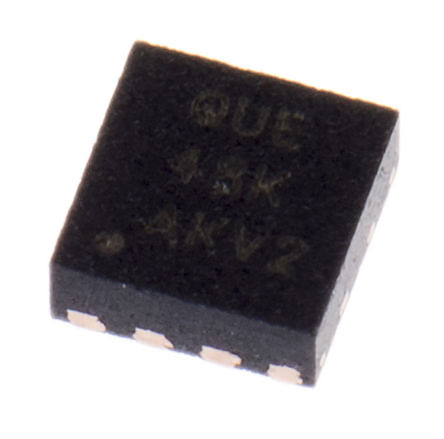

TPS54061DRBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC23959800
Category:
DC to DC Converter
Package:
VSON EP-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4.7V to 60V Step Down Single-Out 0.8V to 58V 0.2A 8Pin VSON EP T/R
Stock Locations:
Availability:
323 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.97

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS54061DRBT is a 60V/200mA synchronous Step-down DC-DC Converter with integrated high-side and low-side MOSFETs. Current mode control provides simple external compensation and flexible component selection. The non-switching supply current is 90 µA. Using the enable pin, shutdown supply current is reduced to 1.4µA. To increase light load efficiency the low-side MOSFET emulates a diode when the inductor current reaches zero. Under-voltage lockout is internally set at 4.5V, but can be increased using two resistors on the enable pin. The output voltage start-up ramp is controlled by the internal slow-start time.
Integrated high-side and low-side MOSFET
Diode emulation for improved light load efficiency
Peak current mode control
90µA Operating quiescent current
1.4µA Shutdown current
50 to 1100kHz Adjustable switching frequency
Synchronizes to external clock
Internal slow-start
0.8V ±1% Voltage reference
Stable with ceramic output capacitors or low-cost aluminium electrolytic
Cycle-by-cycle current limit, thermal, OVP and frequency foldback protection
Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPS54061DRBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSON EP-8
Number of Outputs	1 Output
Output Voltage	0.8V ~ 58V
Output Current	200 mA
Number of Positions	8 Position
Quiescent Current	90.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1.1 MHz
Topology	Buck
Switching Current	0.35 A
Input Voltage (Max)	60 V
Input Voltage (Min)	4.7 V
Output Voltage (Max)	58 V
Output Voltage (Min)	800 mV
Output Current (Max)	200 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.7 V
Input Voltage	4.7V ~ 60V
	Show
Size-Length	3.15 mm
Size-Width	3.15 mm
Size-Height	0.92 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
