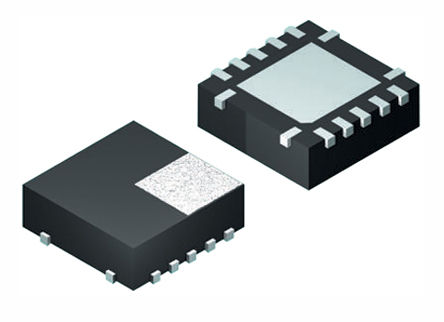

Image is for your reference only,please check specifications for details

TPS54320RHLT - TI
Manufacturer:
TI
ManyChip's Part#:
MC5140354
Category:
DC to DC Converter
Package:
VQFN-14
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4.5V to 17V Synchronous Step Down Single-Out 0.8V to 15V 3A 14Pin VQFN EP T/R
Stock Locations:
Availability:
300 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS54320RHLT is a synchronous step-down SWIFT™ Converter optimized for small designs through high efficiency and integrated high-side and low-side MOSFETs. Further space savings are achieved through current mode control, which reduces component count and by selecting a high switching frequency, reducing the inductor"s footprint. The output voltage startup ramp is controlled by the SS/TR pin which allows operation as either a stand-alone power supply or in tracking situations. Power sequencing is also possible by correctly configuring the enable and the open drain power good pins. Cycle-by-cycle current limiting on the high-side FET protects the device in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. Hiccup protection will be triggered if the overcurrent condition has persisted for longer than the preset time. Thermal shutdown disables the part when die temperature exceeds thermal shutdown temperature.
Integrated 57/50mR MOSFETs
Synchronizes to external clock
Hiccup overcurrent protection
Monotonic start-up into prebiased outputs
Pin-to-pin compatible with the TPS54620
Adjustable slow start/power sequencing
Power good output for undervoltage and overvoltage monitoring
Adjustable input undervoltage lockout (UVLO)
Supported by SwitcherPro™ software tool
0.8V Voltage reference with ±1% accuracy
2µA Low shutdown quiescent current

Show

TPS54320RHLT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	VQFN-14
Number of Outputs	1 Output
Output Voltage	0.8V ~ 15V
Output Current	3 A
Number of Positions	14 Position
Quiescent Current	600 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1.2 MHz
Topology	Buck
Input Voltage (Max)	17 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	15 V
Output Voltage (Min)	800 mV
Output Current (Max)	3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 17V
	Show
Size-Length	3.65 mm
Size-Width	3.65 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
