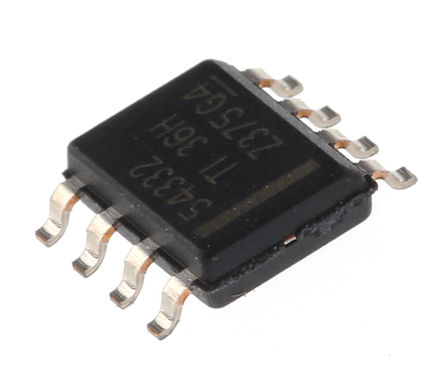

- TPS54332DDA - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC2651346
-
Category:DC to DC Converter
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Step-Down Regulator 3A, 28V Input, 1MHz Step Down SWIFT DC-DC Converter with Eco-mode Conv DC-DC Single Step Down 3.5V to 28V 8Pin HSOP EP Tube
-
Stock Locations:
-
Availability:81 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.71
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS54332DDA is an adjustable output non synchronous buck converter with Eco-Mode in 8 pin SO PowerPAD package. This step down converter integrates a low RDS(on) high side MOSFET. To increase efficiency at light loads a pulse skipping Eco-Mode feature is automatically activated. The 1µA shutdown supply current allows device to be used in battery powered applications. Current mode control with internal slope compensation simplifies the external compensation calculations and reduces component count while allowing use of ceramic output capacitors. A resistor divider programs hysteresis of input undervoltage lockout. An overvoltage transient protection circuit limits voltage overshoots during start up and transient conditions. A cycle by cycle current limit scheme, frequency foldback and thermal shutdown protects device and load in event of an overload condition.
- Input voltage range from 3.5V to 28V
- Adjustable output voltage range from 0.8V to 25V
- Integrated 80mohm high side MOSFET supports up to 3.5A continuous output current
- Fixed 1MHz switching frequency
- Adjustable slow start limits inrush currents
- Programmable UVLO threshold
- Operating temperature range -40°C to 150°C
- This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TPS54332DDA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Frequency | 1.00 MHz |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 25V |
| Output Current | 3.5 A |
| Number of Positions | 8 Position |
| Quiescent Current | 82.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 1 MHz |
| Thermal Shutdown | Yes |
| Topology | Buck |
| Input Voltage (Max) | 28 V |
| Input Voltage (Min) | 3.5 V |
| Output Voltage (Max) | 25 V |
| Output Voltage (Min) | 800 mV |
| Output Current (Max) | 3.5 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.5 V |
| Input Voltage | 3.5V ~ 28V |
| Show | |
| Size-Length | 4.89 mm |
| Size-Width | 3.9 mm |
| Size-Height | 1.48 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
