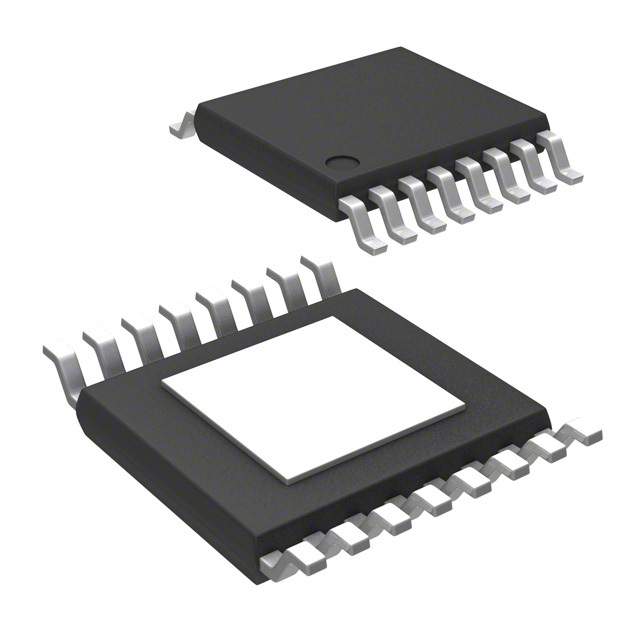

Image is for your reference only,please check specifications for details
- TPS54494PWPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC38669593
-
Category:DC to DC Converter
-
Package:HTSSOP-16
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4.5V to 18V Step Down Dual-Out 0.76V to 7V 4A/2A 16Pin HTSSOP EP T/R
-
Stock Locations:
-
Availability:316 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.91
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS54494 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54494 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54494 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54494 to maintain high efficiency during lighter load conditions. The TPS54494 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.
- The TPS54494 is available in a 4.4 mm × 5 mm 16-pin TSSOP (PWP) and 4 mm × 4 mm 16-pin VQFN (RSA) package, and is specified for an ambient temperature range from –40°C to 85°C.
TPS54494PWPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | HTSSOP-16 |
| Number of Outputs | 2 Output |
| Output Voltage | 0.76V ~ 7V |
| Output Current | 4A, 2A |
| Quiescent Current | 1.20 mA |
| Number of Regulated Outputs | 2 Output |
| Switching Frequency | 700 kHz |
| Topology | Buck |
| Input Voltage (Max) | 18 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 7 V |
| Output Voltage (Min) | 0.76 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 18 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
