Description

The TPS54541DPRT is a Step-down Regulator with an integrated high-side MOSFET. The device survives load dump pulses up to 45V per ISO 7637. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no-load supply current to 152µA. When the enable pin is pulled low, the shutdown supply current is reduced to 2µA. Undervoltage lockout is internally set at 4.3V but can increase using an external resistor divider at the enable pin. The output voltage startup ramp is controlled by the soft-start pin that can also be configured for sequencing and tracking. An open-drain power-good signal indicates the output is within 93 to 106% of the nominal voltage. A wide adjustable switching-frequency range allows for optimization of either efficiency or external component size. Cycle-by-cycle current limit, frequency foldback and thermal shutdown protect internal and external components during an overload condition.
High efficiency at light loads with pulse skipping Eco-mode™
Synchronizes to external clock
Low dropout at light loads with integrated BOOT recharge FET
Adjustable UVLO voltage and hysteresis
UV and OV power-good output
Adjustable soft-start and sequencing
Supported by WEBENCH® software tool
87mR High-side MOSFET
0.8V Internal voltage reference with 1% accuracy
Green product and no Sb/Br

Show

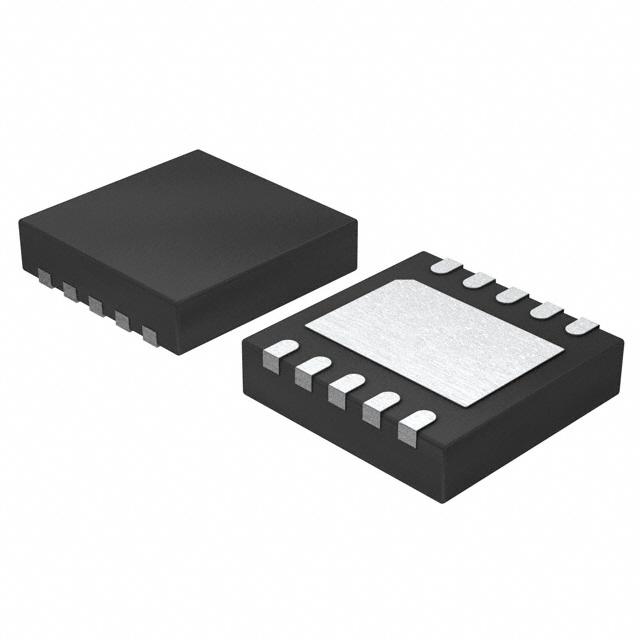

TPS54541DPRT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	WSON-10
Number of Outputs	1 Output
Output Voltage	0.8V ~ 41V
Output Current	5 A
Number of Positions	10 Position
Quiescent Current	152 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2.5 MHz
Topology	Buck
Input Voltage (Max)	42 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	41 V
Output Voltage (Min)	800 mV
Output Current (Max)	5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	42 V
	Show
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
