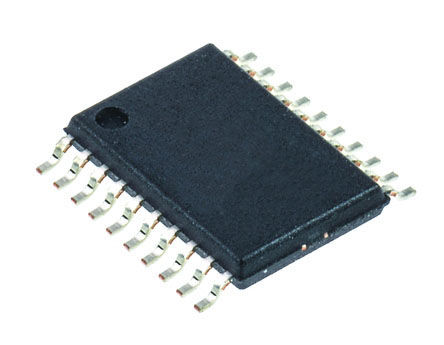

Image is for your reference only,please check specifications for details
- TPS60110PWP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC27694989
-
Category:DC to DC Converter
-
Package:HTSSOP-20
-
Datasheet:Datasheet 3D Model
-
Description:Step-Up Charge Pump Regulator Regulated 5V High-Power Low-Noise Charge Pump DC-DC Converter Charge Pump STPUP 5V 300mA 20Pin HTSSOP EP Tube
-
Stock Locations:
-
Availability:380 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.84
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- description
- The TPS60110 step-up, regulated charge pump generates a 5-V ±4% output voltage from a 2.7-V to 5.4-V input voltage (three alkaline, NiCd, or NiMH batteries; or, one lithium or lithium ion battery). Output current is 300 mA from a 3-V input. Only four external capacitors are needed to build a complete low-noise dc/dc converter. The push-pull operating mode of two single-ended charge pumps assures the low output voltage ripple as current is continuously transferred to the output. From a 3-V input, the TPS60110 can start into full load with loads as low as 16 Ω.
- features
- • Up to 300-mA Output Current
- • Less Than 10-mVpp Output Voltage Ripple
- • No Inductors Required/Low EMI
- • Regulated 5-V ±4% Output
- • Only Four External Components Required
- • Up to 90% Efficiency
- • 2.7-V to 5.4-V Input Voltage Range
- • 60-µA Quiescent Supply Current
- • 0.05-µA Shutdown Current
- • Load Isolated in Shutdown
- • Space-Saving Thermally-Enhanced TSSOP PowerPAD Package
- • Evaluation Module Available (TPS60110EVM−132)
- applications
- • Replaces DC/DC Converters With Inductors in
- − Battery-Powered Applications
- − Li-Ion Battery to 5-V Conversion
- − Portable Instruments
- − Battery-Powered Microprocessor Systems
- − Miniature Equipment
- − Backup-Battery Boost Converters
- − PDAs
- − Laptops
- − Handheld Instrumentation
- − Medical Instruments
TPS60110PWP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | HTSSOP-20 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 5.40V (max) |
| Output Voltage | 5 V |
| Output Current | 300 mA |
| Power Dissipation | 3 W |
| Quiescent Current | 50.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 300 kHz |
| Topology | Boost |
| Input Voltage (Max) | 5.4 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Min) | 5 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 3000 mW |
| Supply Voltage | 2.7V ~ 5.4V |
| Input Voltage | 2.7V ~ 5.4V |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
