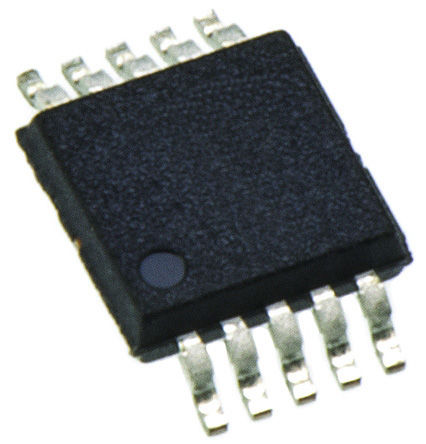

- TPS61016DGS - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC37094136
-
Category:DC to DC Converter
-
Package:VSSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:Step-Up Regulator Low Input Voltage Synchronous Boost Converter with Fixed 3.3V Output Conv DC-DC 0.8V to 3.3V Step Up Single-Out 3.3V 0.2A 10Pin VSSOP Tube
-
Stock Locations:
-
Availability:58 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.45
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS6101x devices are boost converters intended for systems that are typically operated from a single- or dual-cell nickel-cadmium (NiCd), nickel-metal hydride (NiMH), or alkaline battery.
- The converter output voltage can be adjusted from 1.5 V to a maximum of 3.3 V, by an external resistor divider or, is fixed internally on the chip. The devices provide an output current of 200 mA with a supply voltage of only 0.9 V. The converter starts up into a full load with a supply voltage of only 0.9 V and stays in operation with supply voltages down to 0.8 V.
- The converter is based on a fixed frequency, current mode, pulse-width-modulation (PWM) controller that goes automatically into power save mode at light load. It uses a built-in synchronous rectifier, so, no external Schottky diode is required and the system efficiency is improved. The current through the switch is limited to a maximum value of 1300 mA. The converter can be disabled to minimize battery drain. During shutdown, the load is completely isolated from the battery.
- An autodischarge function allows discharging the output capacitor during shutdown mode. This is especially useful when a microcontroller or memory is supplied, where residual voltage across the output capacitor can cause malfunction of the applications. When programming the ADEN-pin, the autodischarge function can be disabled. A low-EMI mode is implemented to reduce interference and radiated electromagnetic energy when the converter enters the discontinuous conduction mode. The device is packaged in the micro-small space saving 10-pin MSOP package. The TPS61010 is also available in a 3 mm × 3 mm 10-pin QFN package.
TPS61016DGS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | VSSOP-10 |
| Frequency | 780 kHz |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 200 mA |
| Number of Positions | 10 Position |
| Quiescent Current | 50.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 500 kHz |
| Topology | Boost |
| Input Voltage (Max) | 3.3 V |
| Input Voltage (Min) | 0.8 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 0.2 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 0.8 V |
| Supply Voltage (Min) | 0.8 V |
| Input Voltage | 0.8V ~ 3.3V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 1.02 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HK STC License | NLR |
