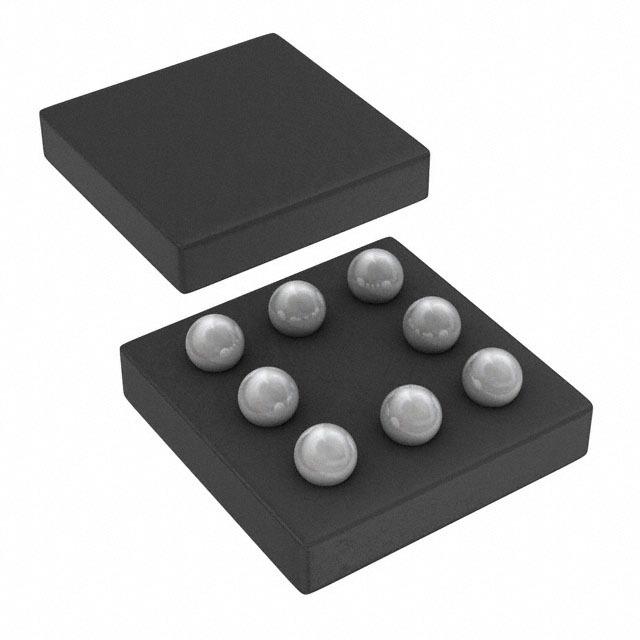

TPS61061YZFR - TI
Manufacturer:
TI
ManyChip's Part#:
MC120471903
Category:
LED Driver, LED Display Driver
Package:
DSBGA-8
Datasheet:
Datasheet 3D Model
Description:
19V, 400mA Switch, 1MHz Boost Converter w/Brightness Control for White LED Power Supplies 8-DSBGA -40℃ to 85℃
Stock Locations:
Availability:
10,725 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.31

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The TPS6106x is a high-frequency, synchronous boost converter with constant current output to drive up to five white LEDs. For maximum safety, the device features integrated overvoltage and an advanced short-circuit protection when the output is shorted to ground. The device operates with 1-MHz fixed switching frequency to allow for the use of small external components and to simplify possible EMI problems. The device comes with three different overvoltage protection thresholds (14 V, 18 V, and 23 V) to allow inexpensive and small-output capacitors with lower voltage ratings. The LED current is initially set with the external sense resistor Rs, and the feedback voltage is regulated to 500 mV or 250 mV, depending on the configuration of the ILED pin.
Features
• LED Driver With Integrated Overvoltage and Short-Circuit Protection
• 2.7-V to 6-V Input Voltage Range
• 500-mV or 250-mV Feedback Voltage
• TPS61060 Powers up to 3 LEDs
• TPS61061 Powers up to 4 LEDs
• TPS61062 Powers up to 5 LEDs
• PWM Brightness Control on Enable
• Digital Brightness Control on ILED
• 1-MHz Fixed Switching Frequency
• 400-mA Internal Power MOSFET Switch
• LEDs Disconnected During Shutdown
• Operates With Small-Output Capacitors Down to 220 nF
• Up to 80% Efficiency
• 8-Pin NanoFree™ Package (Chipscale, CSP)
• 3-mm × 3-mm QFN Package
Applications
• White LED Drivers
• Cellular Phones
• PDAs, Pocket PCs, and Smart Phones
• Digital Still Cameras
• Handheld Devices
