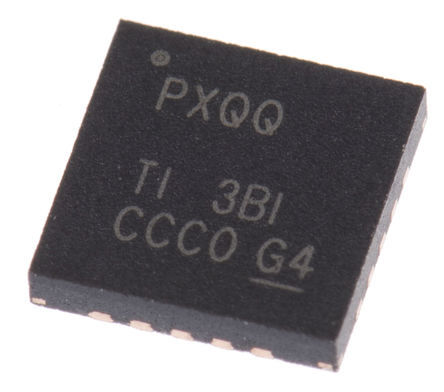

Image is for your reference only,please check specifications for details
- TPS61088RHLT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC979443
-
Category:DC to DC Converter
-
Package:VQFN-20
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.7V to 12V Step Up Single-Out 4.5V to 12.6V 20Pin VQFN EP T/R
-
Stock Locations:
-
Availability:289 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.83
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS61088RHLT is a high-power density fully integrated synchronous Boost Converter with 11mR power switch and a 13mR rectifier switch to provide a high efficiency and small size solution in portable systems. The TPS61088 has wide input voltage range from 2.7 to 12V to support applications with single cell or two cell Lithium batteries. The device has 10A switch current capability and is capable of providing an output voltage up to 12.6V. The TPS61088 uses adaptive constant OFF-time peak current control topology to regulate the output voltage. In moderate to heavy load condition, the TPS61088 works in the pulse width modulation (PWM) mode. In light load condition, the device has two operation modes selected by the MODE pin. One is the pulse frequency modulation (PFM) mode to improve the efficiency and another one is the forced PWM mode to avoid application problems caused by low switching frequency.
- Mode selection between PFM mode and forced PWM mode at light load
- Resistor-programmable switch peak current limit
- Programmable soft-start
- Output overvoltage protection at 13.2V
- Cycle-by-cycle overcurrent protection
- Thermal shutdown
- Up to 91% efficiency at VIN=3.3V, VOUT=9V and IOUT=3A
- 1µA Current into VIN pin during shutdown
- Green product and no Sb/Br
TPS61088RHLT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | VQFN-20 |
| Number of Outputs | 1 Output |
| Output Voltage | 4.5V ~ 12.6V |
| Output Current | 10 A |
| Number of Positions | 20 Position |
| Quiescent Current | 110 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 2.2 MHz |
| Topology | Boost |
| Switching Current | 10 A |
| Input Voltage (Max) | 12 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Max) | 12.6 V |
| Output Voltage (Min) | 4.5 V |
| Output Current (Max) | 10 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Min) | 2.7 V |
| Input Voltage | 12 V |
| Show | |
| Size-Length | 4.65 mm |
| Size-Width | 0.95 mm |
| Size-Height | 3.65 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
