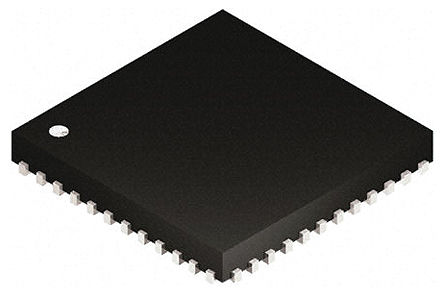

TPS65400RGZT - TI
Manufacturer:
TI
ManyChip's Part#:
MC586996
Category:
DC to DC Converter
Package:
VQFN-48
Datasheet:
Datasheet 3D Model
Description:
4.5V to 18V input, 4A/4A/2A/2A synchronous quad converter with PMBus/I2C Interface 48-VQFN -40℃ to 85℃
Stock Locations:
Availability:
256 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.88

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS65400RGZT is an integrated Power Management unit optimized for applications requiring small form factor and high power conversion efficiency, enabling small space-constrained equipment with high ambient operating temperature without cooling. It provides high-power efficiency at a system level by enabling a single stage conversion from an intermediate distribution bus with an optimized combination of regulators. TPS65400 implements a PMBus-I2C-compatible digital interface. It helps Core Chip optimize system performance by runtime changing regulated voltage, power sequence, phase interleaving, operating frequency, read back operating status and so forth. The TPS65400 consists of four high-current buck switching regulators (SW1, SW2, SW3 and SW4) with integrated FETs. The switching power supplies are intended for powering high-current digital circuits such as the processor, FPGA, ASIC, memory and digital I/Os.
Efficiency up to 95% for each switching regulator
Pre-bias startup algorithm minimizes voltage dip during startup
AEC-Q100 grade 1 option
Adjustable VOUT with external feedback resistors
Sequencing control through precision enable pins for each switcher
Resistor adjustable PWM switching frequency from 275kHz to 2.2MHz
Clock sync input and clock output
Soft-start delay through external capacitor

Show

TPS65400RGZT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	VQFN-48
Supply Voltage (DC)	18.0 V
Number of Outputs	4 Output
Output Voltage	0.6V ~ 16V
Output Current	4A, 2A
Number of Positions	48 Position
Quiescent Current	8.00 mA
Number of Regulated Outputs	4 Output
Switching Frequency	275kHz ~ 2.2MHz
Topology	Buck
Input Voltage (Max)	18 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	16.2 V
Output Voltage (Min)	0.6 V
Output Current (Max)	4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	4500 mW
Supply Voltage	18 V
	Show
Size-Length	7.15 mm
Size-Width	7.15 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
