TPS65930A2ZCH TI - Battery Management IC

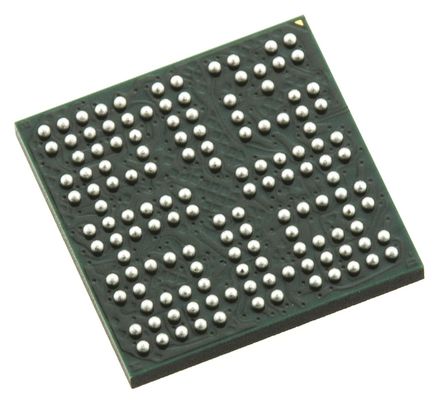

Image is for your reference only,please check specifications for details

TPS65930A2ZCH - TI
Manufacturer:
TI
ManyChip's Part#:
MC26287500
Category:
Battery Management IC
Package:
NFBGA-139
Datasheet:
Datasheet 3D Model
Description:
Интегральная ИС управления питанием (PMIC) с 3 DC-DC, 4 LDO, аудиокодеком, высокоскоростным USB-трансивером 139-NFBGA от -40℃ до 85℃
Stock Locations:
Availability:
60 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 18.63

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS65930A2ZCH is a Power Management IC for OMAP™ and other mobile applications. The devices include power-management, universal serial bus (USB) high-speed (HS) transceiver, light-emitting diode (LED) drivers, an analog-to-digital converter (ADC), a real-time clock (RTC) and an embedded power control (EPC). In addition, the TPS65930 includes a full audio codec with two digital-to-analog converters (DACs) and two ADCs to implement dual voice channels and a stereo downlink channel that can play all standard audio sample rates through a multiple format inter-integrated sound (I2S)/time division multiplexing (TDM) interface. This optimized device supports the power and peripheral requirements of the OMAP application processors. The power portion of the devices contains three buck converters, two controllable by a dedicated SmartReflex class-3 interface, multiple low dropout (LDO) regulators, an EPC to manage the power sequencing requirements of OMAP and an RTC and backup module.
Three efficient step-down converters
Four external linear LDOs for clocks and peripherals
SmartReflex dynamic voltage management
Differential input main microphones
Mono auxiliary/FM input
External predrivers for class D (stereo)
TDM interface
Automatic level control (ALC)
Digital and analog mixing
USB 2.0 on-the-go (OTG)-compliant HS transceivers
12-bit universal transceiver macro interface ULPI
USB power supply (5V charge pump for VBUS)

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	139 Pin
Case/Package	NFBGA-139
Supply Voltage (DC)	4.50 V
Number of Outputs	7 Output
Supply Current	300 µA
Number of Positions	139 Position
Number of Regulated Outputs	7 Output
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5 V
	Show
Size-Length	10.1 mm
Size-Width	10.1 mm
Size-Height	0.94 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	5A991.g
