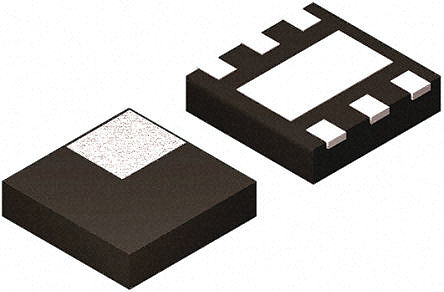

Image is for your reference only,please check specifications for details

TPS70930DRVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC45817271
Category:
Voltage Regulator
Package:
WDFN-6
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS70930DRVT Fixed LDO Voltage Regulator, 2.7V to 30V in, 3V/150mA out, SON-6
Stock Locations:
Availability:
246 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.63

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Keep the energy stable for every system by using this LDO TPS70930DRVT linear regulator by Texas Instruments. Its typical dropout voltage at current is 0.245@50mA V. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 0.15 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 30 V. With a fixed output that has a voltage of 3 V, this is power management at its best. Users like the load regulation of 20mV(Typ) and line regulation of 3mV(Typ). This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

TPS70930DRVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WDFN-6
Number of Outputs	1 Output
Output Voltage	3 V
Output Current	150 mA
Number of Positions	6 Position
Quiescent Current	1 µA
Output Capacitor Type	Ceramic
voltage rating	300 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	30 V
Input Voltage (Min)	2.7 V
Output Current (Max)	500 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	≤30 V
	Show
Size-Length	2.1 mm
Size-Width	2.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
