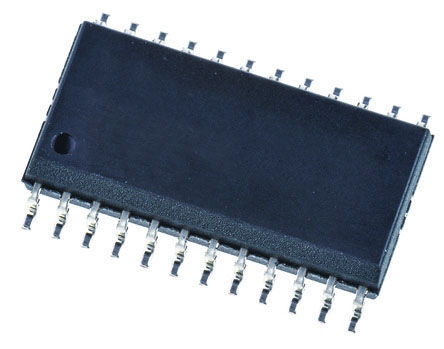

Image is for your reference only,please check specifications for details

DAC7802KU - TI
Manufacturer:
TI
ManyChip's Part#:
MC20933666
Category:
Digital to Analog, DAC IC
Package:
SOIC-24
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DAC7802KU Digital to Analog Converter, 12Bit, 1.25MSPS, Parallel, 4.5V to 5.5V, SOIC, 24Pins
Stock Locations:
Availability:
233 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 16.37

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The DAC7800, DAC7801 and DAC7802 are members of a new family of monolithic dual 12-bit CMOS multiplying Digital-to-Analog Converters (DACs). The digital interface speed and the AC multiplying performance are achieved by using an advanced CMOS process optimized for data conversion circuits. High stability on-chip resistors provide true 12-bit integral and differential linearity over the wide industrial temperature range of –40°C to +85°C.
The DAC7800 features a serial interface capable of clocking in data at a rate of at least 10MHz. Serial data is clocked (edge triggered) MSB first into a 24-bit shift register and then latched into each DAC separately or simultaneously as required by the application. An asynchronous CLEAR control is provided for power-on reset or system calibration functions. It is packaged in a 16-pin 0.3" wide plastic DIP.
FEATURES
● TWO DACs IN A 0.3" WIDE PACKAGE
● SINGLE +5V SUPPLY
● HIGH-SPEED DIGITAL INTERFACE:
Serial—DAC7800
8 + 4-Bit Parallel—DAC7801
12-Bit Parallel—DAC7802
● MONOTONIC OVER TEMPERATURE
● LOW CROSSTALK: –94dB min
● FULLY SPECIFIED OVER –40OC TO +85OC
APPLICATIONS
● PROCESS CONTROL OUTPUTS
● ATE PIN ELECTRONICS LEVEL SETTING
● PROGRAMMABLE FILTERS
● PROGRAMMABLE GAIN CIRCUITS
● AUTO-CALIBRATION CIRCUITS

Show

DAC7802KU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SOIC-24
Operating Voltage	4.5V ~ 5.5V
Number of Outputs	2 Output
Supply Current	200 µA
Number of Channels	2 Channel
Number of Positions	24 Position
Number of Bits	12 Bit
Sample Rate	1.25 mHz
Power Consumption	1 mW
Thermal Shutdown	No
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	2 DAC
Supply Voltage	4.5V ~ 5.5V
	Show
Size-Length	15.4 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
