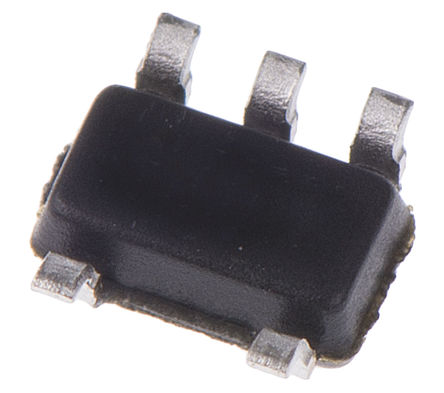

Image is for your reference only,please check specifications for details

TPS72118DBVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC9905769
Category:
Voltage Regulator
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 150mA, Fixed(1.8V), Low Input Voltage Requirement, Low Quiescent Current LDO Regulator Pos 1.8V 0.15A 5Pin SOT-23 T/R
Stock Locations:
Availability:
56 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.32

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This LDO TPS72118DBVT linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±3 %. Its typical dropout voltage at current is 0.15@150mA V. This device has a maximum power dissipation of 555 mW. This voltage regulation device"s single output can produce a current up to 0.15 A. Using the part will provide the power your application needs by requiring a voltage only of 1.8 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Users like the load regulation of 0.5mV(Typ) and line regulation of 0.09%/V. Its maximum power dissipation is 555 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.

Show

TPS72118DBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Voltage (DC)	5.50V (max)
Power Rating	0.555 W
Number of Outputs	1 Output
Input Voltage (DC)	5.50V (max)
Output Voltage	1.8 V
Output Current	150 mA
Supply Current	120µA ~ 850µA
Number of Positions	5 Position
Power Dissipation	0.555 W
Quiescent Current	0.085 mA
Output Capacitor Type	Ceramic
voltage rating	150 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.8 V
Output Voltage (Min)	1.8 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	555 mW
Accuracy	3 %
Input Voltage	≤5.5 V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
