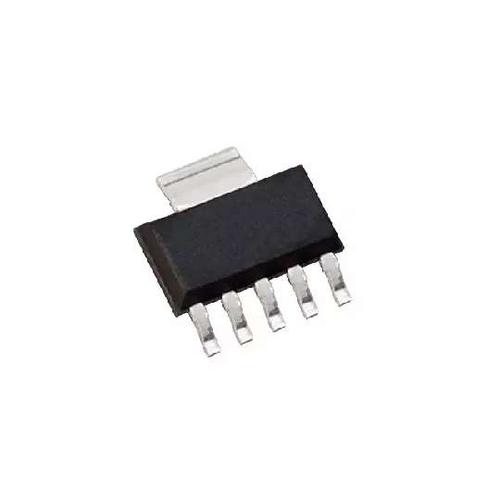

TPS72525DCQ - TI
Manufacturer:
TI
ManyChip's Part#:
MC41432748
Category:
Voltage Regulator
Package:
SOT-223-6
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 1A, Fixed(2.5V), Any cap, Low Input Voltage, Integrated SVS LDO Regulator Pos 2.5V 1A 6Pin(5+Tab) SOT-223 Tube
Stock Locations:
Availability:
307 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.07

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TPS725xx family of 1-A low-dropout (LDO) linear regulators has fixed voltage options available that are commonly used to power the latest DSPs, FPGAs, and microcontrollers. An adjustable option ranging from 1.22 V to 5.5 V is also available. The integrated supervisory circuitry provides an active low RESET signal when the output falls out of regulation. The no
capacitor/any capacitor feature allows the customer to tailor output transient performance as needed. Therefore, compared to other regulators capable of providing the same output current, this family of regulators can provide a stand-alone power supply solution or a post regulator for a switch mode power supply.
FEATURES
• 1-A Output Current
• Available in 1.5-V, 1.6-V, 1.8-V, 2.5-V Fixed-Output and Adjustable Versions (1.2-V to 5.5-V)
• Input Voltage Down to 1.8 V
• Low 170-mV Dropout Voltage at 1 A(TPS72525)
• Stable With Any Type/Value Output Capacitor
• Integrated Supervisor (SVS) With 50-ms RESET Delay Time
• Low 210-µA Ground Current at Full Load (TPS72525)
• Less than 1-µA Standby Current
• ±2% Output Voltage Tolerance Over Line, Load, and Temperature (-40°C to 125°C)

Show

TPS72525DCQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-223-6
Number of Outputs	1 Output
Output Voltage	2.5 V
Output Current	1 A
Supply Current	225µA ~ 325µA
Number of Positions	5 Position
Quiescent Current	75.0 µA
Output Capacitor Type	Ceramic
voltage rating	170 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	6 V
Input Voltage (Min)	1.8 V
Output Voltage (Min)	2.5 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	≤6 V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
