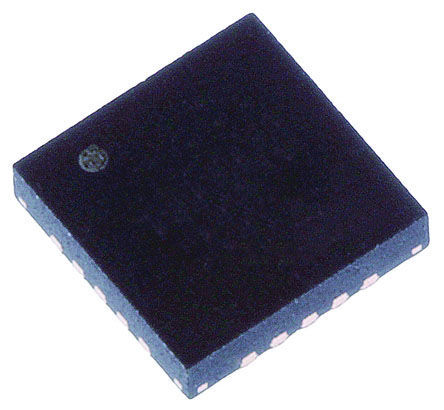

TPS74201RGWT - TI
Manufacturer:
TI
ManyChip's Part#:
MC4317404
Category:
Voltage Regulator
Package:
VQFN-20
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 1.5A, Adj.(0.8 to 3.3V), Any or No Cap, Programmable Soft Start LDO Regulator Pos 0.796V to 3.6V 1.5A 20Pin VQFN EP T/R
Stock Locations:
Availability:
10,925 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.65

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS74201RGWT is a low-dropout (LDO) Linear Regulator provides an easy-to-use, robust power-management solution for a wide variety of applications. User-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and well suited for powering many different types of processors and ASICs. The enable input and power-good output allow easy sequencing with external regulator. This complete flexibility permits the user to configure a solution that meets the sequencing requirements of FPGAs, DSPs and other applications with special start-up requirements. A precision reference and error amplifier deliver 1% accuracy over load, line, temperature and process. The LDO is stable with ceramic output capacitors and the device is fully specified from -40 to 125°C. The device is yielding a highly compact total solution size.
Stable with any or no output capacitor
Excellent transient response
Open-drain power-good
Active high enable
Supports input voltages as low as 0.8V with external bias supply
55mV at 1.5A Typical ultra-low dropout
Green product and no Sb/Br

Show

TPS74201RGWT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	VQFN-20
Power Rating	3.28 W
Number of Outputs	1 Output
Input Voltage (DC)	6.00V (max)
Output Voltage	0.8V ~ 3.6V
Output Current	1.5 A
Supply Current	115µA ~ 1.5mA
Number of Positions	20 Position
Power Dissipation	3280 W
Quiescent Current	3.00 mA
Output Capacitor Type	Ceramic
voltage rating	0.055V @1.5A
Number of Regulated Outputs	1 Output
Input Bias Current	4.00 mA
Input Voltage (Max)	5.5 V
Input Voltage (Min)	0.8 V
Output Voltage (Max)	3.6 V
Output Voltage (Min)	800 mV
Output Current (Max)	1.5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	1 %
Input Voltage	0.86V ~ 5.5V
	Show
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
