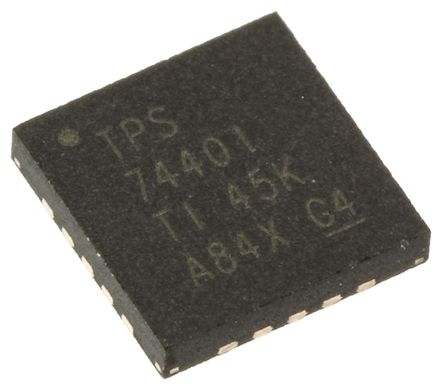

- TPS74401RGWT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1959942
-
Category:Voltage Regulator
-
Package:VQFN-20
-
Datasheet:Datasheet 3D Model
-
Description:Single Channel LDO Single Output LDO, 3A, Adj.(0.8 to 3.3V), Fast Transient Response, Programmable Soft Start LDO Regulator Pos 0.796V to 3.6V 3A 20Pin VQFN EP T/R
-
Stock Locations:
-
Availability:275 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.88
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS74401RGWT is a Single Output Low Dropout Regulator with fast transient response and programmable soft-start for a wide variety of applications. The user-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and well-suited for powering many different types of processors and application-specific integrated circuits (ASICs). The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility lets the user configure a solution that meets the sequencing requirements of field-programmable gate arrays (FPGAs), digital signal processors (DSPs) and other applications with specific start-up requirements. A precision reference and error amplifier deliver 1% accuracy over load, line, temperature and process. The LDO is stable without an output capacitor or with ceramic output capacitors.
- Soft-start (SS) pin provides a linear start-up with ramp time set by external capacitor
- 1% Accuracy over line, load and temperature
- Supports input voltages as low as 0.9V with external bias supply
- Ultra-low dropout (115mV at 3.0A (typical))
- Stable with any or no output capacitor
- Excellent transient response
- Open-drain power-good (VQFN only)
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TPS74401RGWT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | VQFN-20 |
| Supply Voltage (DC) | 5.50V (max) |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 5.50V (max) |
| Output Voltage | 0.796V ~ 3.6V |
| Output Current | 3 A |
| Number of Positions | 20 Position |
| Power Dissipation | 2.74 W |
| Quiescent Current | 3.00 mA |
| Output Capacitor Type | Ceramic |
| voltage rating | 115 mV |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 0.8 V |
| Output Voltage (Max) | 3.6 V |
| Output Voltage (Min) | 800 mV |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2740 mW |
| Accuracy | ±1 % |
| Input Voltage | 5.5V ~ 0.8V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 5 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
