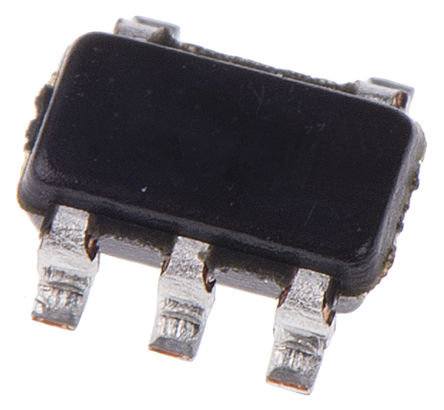

TPS76325DBVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC5167990
Category:
Voltage Regulator
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 150mA, Fixed(2.5V), Low Quiescent Current, Thermal Protection LDO Regulator Pos 2.5V 0.15A 5Pin SOT-23 T/R
Stock Locations:
Availability:
244 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.55

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS76325DBVT is a 2.5V fixed output low-power low-dropout (LDO) Linear Regulator. This regulator feature low quiescent currents compared to conventional LDO regulators. A combination of new circuit design and process innovation has enabled the usual PNP pass transistor to be replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the dropout voltage is very low - typically 300mV at 150mA of load current and is directly proportional to the load current. Since the PMOS pass element is a voltage-driven device, the quiescent current is very low (140µA maximum) and is stable over the entire range of output load current (0 to 150mA). The low-dropout (LDO) voltage feature and low-power operation result in a significant increase in system battery operating life. The device also features a logic-enabled sleep mode to shut down the regulator, reducing quiescent current to 1µA maximum at TJ = 25°C.
Thermal protection
Over current limitation
<2µA Quiescent current in shutdown mode
Green product and no Sb/Br

Show

TPS76325DBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Operating Voltage	2.7V ~ 10V
Power Rating	0.555 W
Number of Outputs	1 Output
Input Voltage (DC)	10.0V (max)
Output Voltage	2.5 V
Output Current	150 mA
Number of Channels	1 Channel
Number of Positions	5 Position
Power Dissipation	0.555 W
Quiescent Current	0.085 mA
Output Capacitor Type	Ceramic
voltage rating	375 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	10 V
Input Voltage (Min)	2.7 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	555 mW
Accuracy	3 %
Supply Voltage (Min)	2.7 V
Input Voltage	≤10 V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
