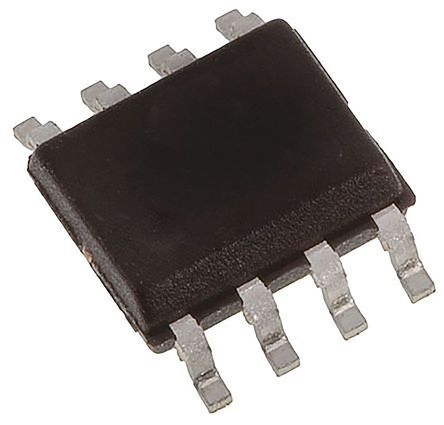

Image is for your reference only,please check specifications for details

TPS76633D - TI
Manufacturer:
TI
ManyChip's Part#:
MC8586650
Category:
Voltage Regulator
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS76633D Fixed LDO Voltage Regulator, 2.7V to 10V, 230mV Dropout, 3.3Vout, 250mAout, SOIC-8
Stock Locations:
Availability:
249 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.83

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS76633D is a 3.3V fixed output low-dropout (LDO) Linear Regulator designed to have an ultralow quiescent current and be stable with a 4.7µF capacitor. Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading (typically 35µA over the full range of output current, 0mA to 250mA). These two key specifications yield a significant improvement in operating life for battery-powered systems. This LDO family also features a sleep mode, applying a TTL high signal to EN (enable) shuts down the regulator, reducing the quiescent current to less than 1µA (typical). Power good (PG) is an active high output that can be used to implement a power-ON reset or a low-battery indicator.
Ultra-low 35µA typical Quiescent current
3% Tolerance over specified conditions
Open drain power good
Thermal shutdown protection
Green product and no Sb/Br

Show

TPS76633D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Current Rating	250 mA
Power Rating	0.904 W
Number of Outputs	1 Output
Input Voltage (DC)	10.0V (max)
Output Voltage	3.3 V
Output Current	250 mA
Supply Current	50 µA
Number of Positions	8 Position
Power Dissipation	0.904 W
Quiescent Current	0.035 mA
Output Capacitor Type	Tantalum
voltage rating	0.23V @250mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	10 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.25 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	904 mW
Accuracy	±3 %
Input Voltage	≤10 V
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
